Legend Valve 101-445 1 T-2100 FP 3 Way IPS B.V.

Product Description

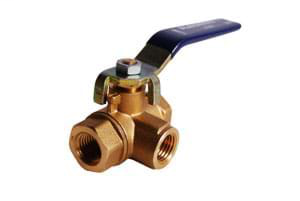

Legend Valve offers the 101-445, a three-way ball valve in the T-2100 series. This valve has a nominal size of one inch and features FNPT end style. It is designed for high performance with a maximum pressure rating of six hundred psi CWP. The body is made of forged brass with a polished chrome forged brass ball. Key dimensions include an inlet to outlet length of three point zero three inches and a top to inlet center distance of two point three three inches.

• Full port design ensures optimal flow.
• Directional arrow indicates flow path.
• L-port design directs media efficiently.

Product Highlights

This valve is suitable for commercial and industrial diverter applications. It meets ANSI/ASME B1.20.1 and ASTM B124 UNS C37700 standards. The product is imported and comes with a five-year warranty.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-445

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Trim Material: Forged Brass Stem and PTFE Seat
• Nominal Size: 1 in
• End Style: FNPT
• Inlet to Outlet Length: 3.03 in
• Top to Inlet Center: 2.33 in
• Port Type: Full
• Series: T-2100
• Pressure Rating: 600 psi CWP
• Type: 3-Way
