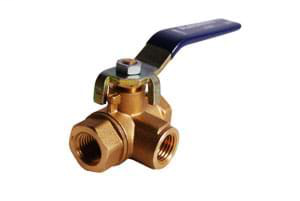

Legend Valve 101-444 3/4 T-2100 FP 3 Way IPS B.V.

Product Description

The Legend Valve 101-444 is a three-way ball valve designed for a variety of plumbing applications. This valve features a FNPT end style and is suitable for commercial and industrial diverter applications.

• Full port design allows for high flow capacity
• Directional arrow clearly indicates flow path
• 150 psi working steam pressure rating

Product Highlights

This valve is constructed from polished chrome forged brass, providing durability and resistance to corrosion. Its compact design offers an inlet to outlet length of two point five six inches and a top to inlet center measurement of two point one seven inches.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Type: 3-Way

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.56 inches
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-2100
• Top to Inlet Center: 2.17 inches
• Trim Material: Forged Brass Stem and PTFE Seat
