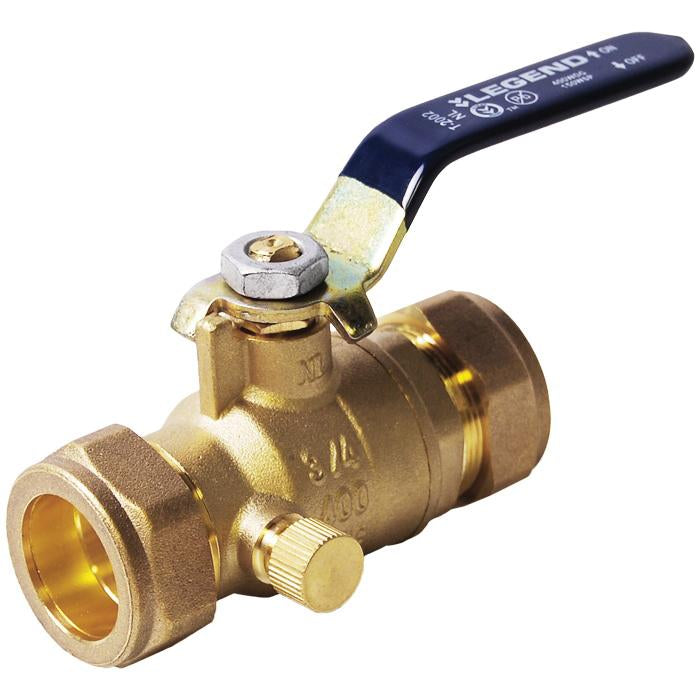

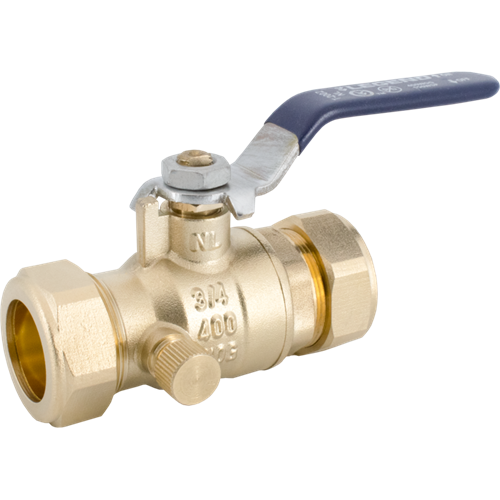

Legend Valve 101-434NL T-2002NL Full Port Compression Ball Valve with Drain 3/4 inches Comp x 3/4 inches Comp

Product Description

The LEGEND VALVE 101-434NL is a T-2002NL series lead-free full port tubing compression ball valve with a drain, designed for potable water installations. Constructed from dezincification-resistant (DZR) forged brass, this valve resists corrosion across various water conditions. It features bubble-tight shutoff and a capped waste port, enabling system isolation, drain-down, and servicing for maintenance or freeze-up prevention. The 3/4 x 3/4 inch compression connections facilitate easy, lead-free compliant replacement without sweating, and it is rated for 400 psi CWP.

• Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
• UPC / IAPMO certified to ANSI / NSF Standard 61-G
• End connections comply with: ANSI / ASME B1.20.1 (FNPT) ANSI / ASME B16.18 (CTS Solder)

Product Highlights

Lead-free DZR forged brass ball valve with full port design, compression ends, and drain for potable water systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-434NL
• Country of Origin: Import

Technical Specifications

• Package Quantity: 1
• Pressure Rating: 400 psi CWP
• Material: Lead Free Brass
• Size: 3/4 x 3/4
• Valve Type: Ball Valve
• Configuration: Comp x Comp
• Connection Style: Compression
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Compression
• Finish: Polished Chrome
• Inlet to Outlet Length: 3.72 in
• Media: Water
• Nominal Size: 3/4 in
• Port Type: Full
• Series: T-2002NL
• Top to Inlet Center: 1.86 in
• Trim Material: Brass Stem and PTFE Seat
• Handle Material: Steel
• Lead-Free: Yes
• Material Standard: ASTM B124 C37700, ASTM B16 C36000, ASTM B455 C38500, ASTM B587 C26800, C46500
• Packing Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Specifications Met: ANSI 9002, IAPMO, NSF
