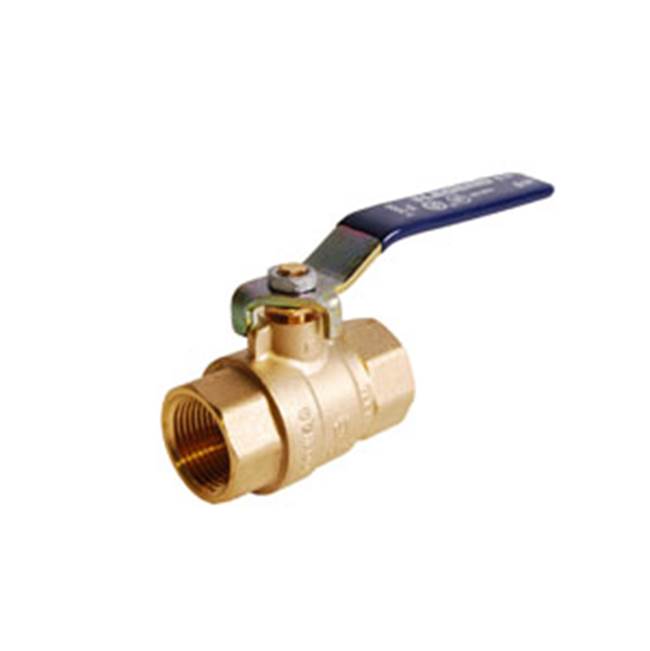

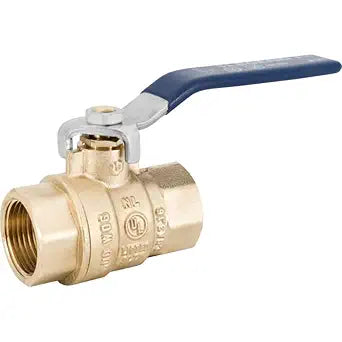

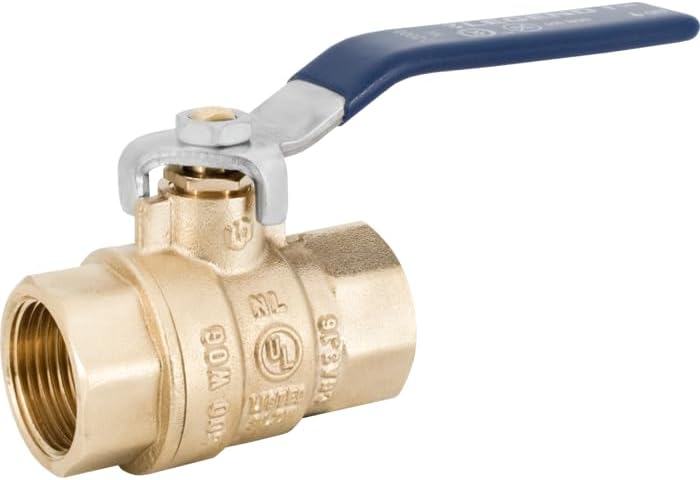

Legend Valve 101-412 T-2000 Ips F.P. Ball Valve 3/8

Product Description

The LEGEND VALVE 101-412 T-2000 Series Ball Valve is a 3/8 inch nominal, full port valve with FNPT end style, designed for natural, manufactured, mixed LP gas, and air mixtures. It features a forged brass body, a polished chrome forged brass ball, and a forged brass stem with PTFE seat trim, capable of handling 600 psi CWP pressure. Its inlet to outlet length is 1.73 inches, with a top to inlet center measurement of 1.42 inches.

• Durable forged brass body ensures longevity and robust performance.
• Features a bottom loaded, blow-out proof, gland-follower stem design for enhanced safety.
• Suitable for applications involving 150 psi saturated steam.

Product Highlights

cCSAus Certified and IAPMO/UPC Tested to ANSI/NSF 61-8 for quality assurance.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-412
• Country of Origin: Import

Technical Specifications

• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Series: T-2000
• End Style: FNPT
• Port Type: Full
• Manufacturer: LEGEND VALVE
• Nominal Size: 3/8 in
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Trim Material: Forged Brass Stem and PTFE Seat
• Pressure Rating: 600 psi CWP
• Top To Inlet Center: 1.42 in
• Inlet To Outlet Length: 1.73 in
• Product Type: Full Port Ball Valve
• Domestic/Import: Import
