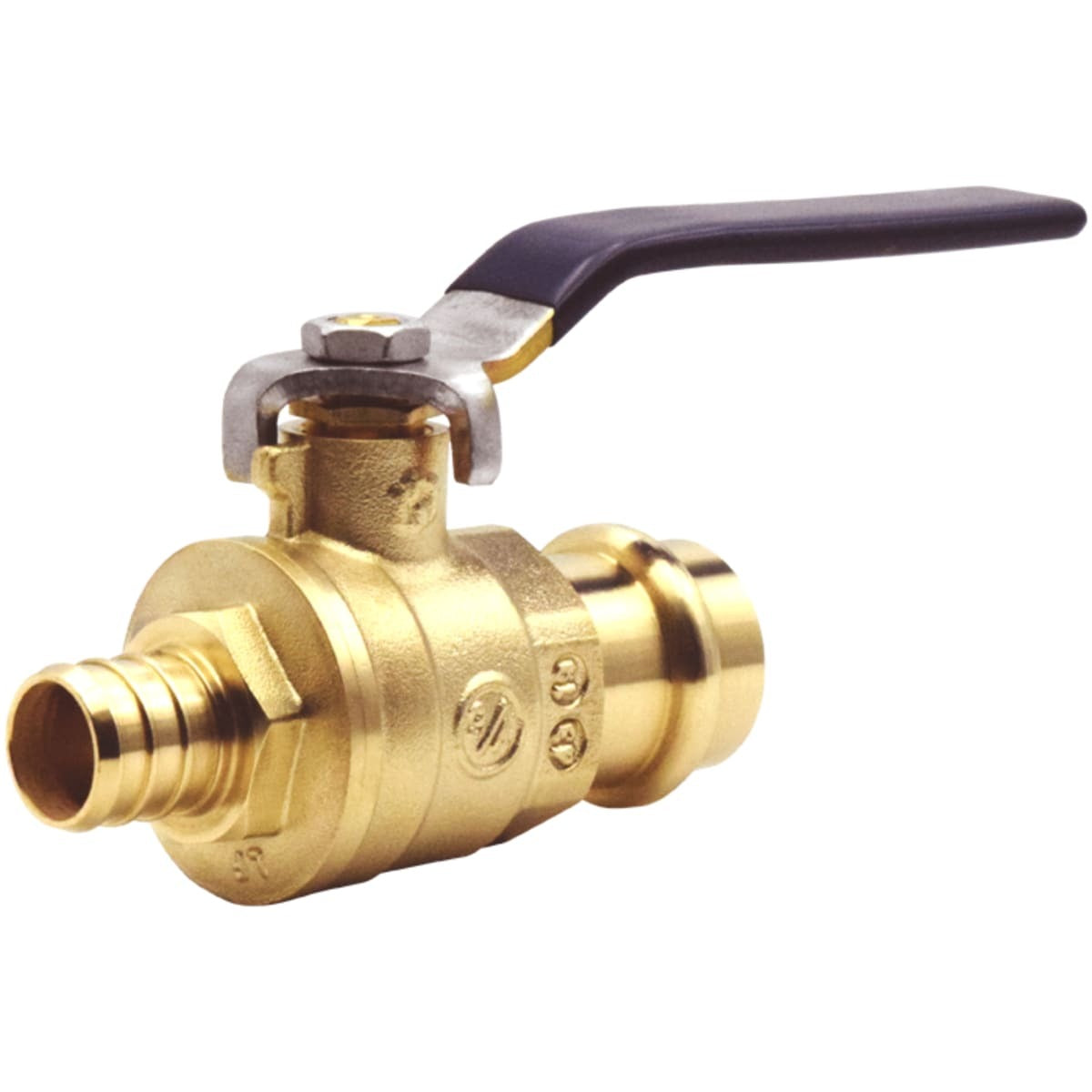

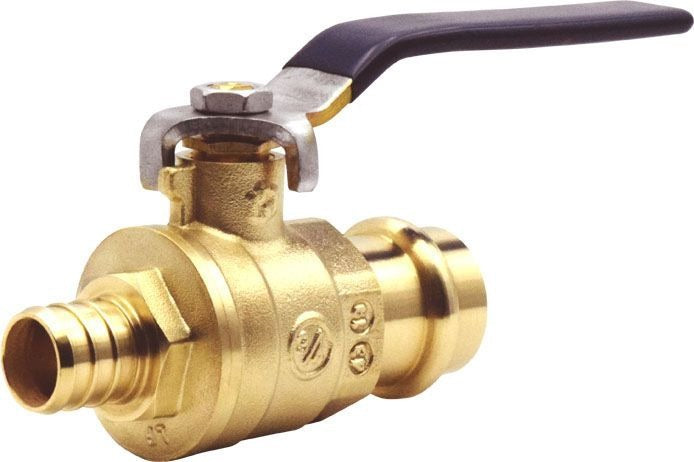

Legend Valve 101-385NL P-2006NL Press x PEX Ball Valve 1 in (101-385NL)

Product Description

The Legend Valve 101-385NL is a 1 in P-2006NL no-lead press x PEX ball valve for press-to-PEX transitions. It features a brass ball and brass body constructed from dezincification-resistant forged brass, PTFE trim, and EPDM softgoods. The valve has a 0.71 in orifice, inlet-to-outlet length of 2.3 in and a bottom-loaded, blowout-proof stem with dual-seal PTFE packing for potable water and plumbing system use.

• 1 in press x PEX (F1807) transition ball valve with 0.71 in orifice and no-lead forged brass construction
• PTFE trim and EPDM softgoods with dual-seal PTFE packing; bottom-loaded, blowout-proof stem
• Inlet-to-outlet length 2.3 in; top-to-inlet center 3.75 in; pressure rating 250 psi CWP

Product Highlights

No-lead forged brass press-to-PEX transition valve, PTFE/EPDM sealing, bottom-loaded blowout-proof stem, compatible with PEX and PE-RT systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-385NL
• Country of Origin: Import

Technical Specifications

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-385NL
• Series/Model: P-2006NL
• Type: No Lead ball valve / Transition
• Nominal Size: 1 in
• Connection Type: Press x PEX (F1807)
• Orifice Size: 0.71 in
• Body Material: Brass (dezincification-resistant forged brass)
• Ball Material: Brass (dezincification-resistant forged brass)
• Material (general): No lead forged brass / DZR forged brass
• Trim Material: PTFE
• Seal Material: EPDM (O-ring); PTFE (packing)
• Stem Design: Bottom-loaded, blowout-proof stem with dual-seal PTFE packing and stem seats
• End-to-End / Inlet-to-Outlet Length: Inlet-to-outlet length: 2.3 in; End-to-end distance: 3.78 in
• Top-to-Inlet Center: 3.75 in
• Pressure Rating: 250 psi CWP @ 250 F
• Compatibility: PE-RT and PEX plumbing systems; potable water applications
• Actuation Type: Lever handle / quarter-turn ball operation
• Standards / Certifications: ANSI/ASME B16.51; NSF 61
• Lead Content: No lead
• UPC: 662545138510
• Weight: 1.560 Pound
• Country of Origin: Import
• Application: Residential and commercial plumbing, potable water, hydronic heating, HVAC
