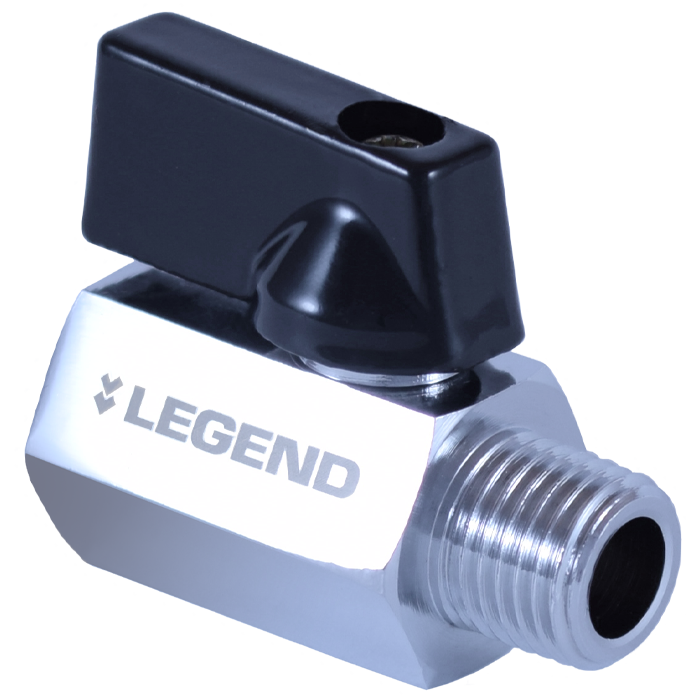

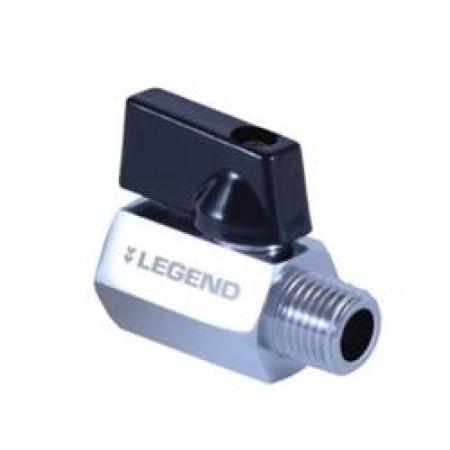

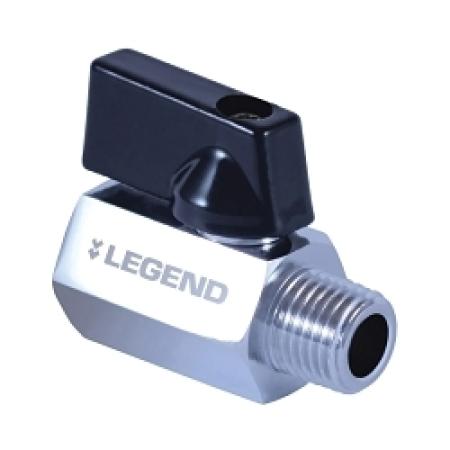

Legend Valve 101-349 Mini Ball Valve (1/2 in MNPT x FNPT)

Product Description

The Legend Valve 101-349 is a 1/2 in brass mini ball valve with MNPT x FNPT threaded connections designed for compact on/off fluid control. The chrome-plated, one-piece barstock body provides a full-port flow path and reduces seam leak risk. The valve is rated 400 psi cold working pressure (CWP), conforms to ANSI/ASME B1.20.1 threaded connections, and is not suitable for steam service. Typical uses include gaugecock and confined piping installations.

• Chrome-plated brass construction with one-piece barstock-type body
• Threaded MNPT x FNPT connections and 1/2 in nominal size
• Rated 400 psi cold working pressure (CWP); not suitable for steam service

Product Highlights

Compact chrome-plated brass mini ball valve, 1/2 in MNPT x FNPT, 400 psi CWP, full-port design for confined piping and gaugecock applications

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-349
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: 101-349
• Brand: Legend Valve
• Model Number: WBB3150622
• Size: 1/2 in
• Nominal Size: 1/2 in
• Connection Type: MNPT x FNPT
• Connection Style: MNPT, FNPT
• Thread Size: 1/2 inch NPT
• Material: Brass
• Finish: Chrome-plated
• Valve Type: Ball Valve
• Configuration: MNPT x FNPT
• Cold Working Pressure (CWP): 400 psi
• Working Steam Pressure: Not suitable for steam service
• Standards: Threaded end connections conform to ANSI/ASME B1.20.1
• Certifications: Manufactured in an ISO 9002 accredited facility
• Dimensions: 2.75 x 3.5 x 1.2 in
• Weight Each: 0.26 lb
• UPC: 662545126029
• Country of Origin: China
• Product Type: Mini ball valve
