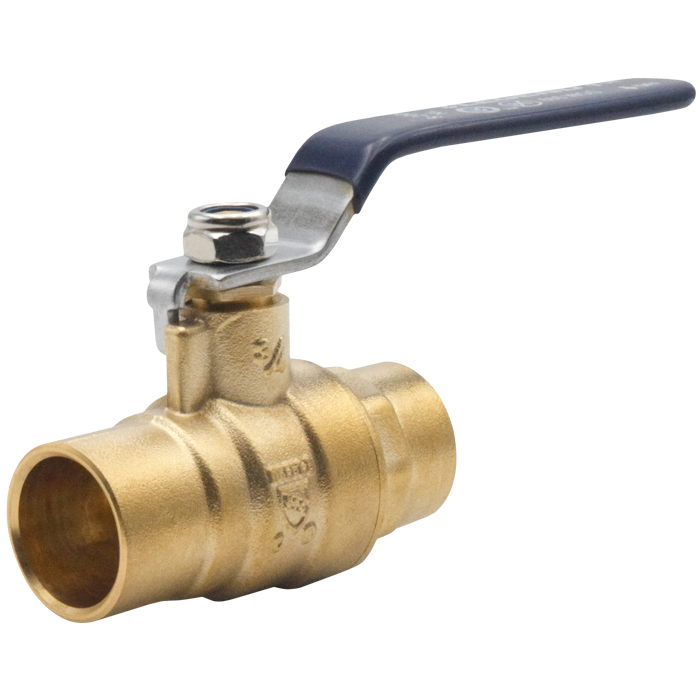

Legend Valve 101-333NL 1/2 S-2001 NL SWT Ball Valve 101-333NL

Product Description

The Legend Valve 101-333NL is a 1/2 inch soldered ball valve designed for plumbing applications. This lead-free valve is compliant with current lead-free plumbing laws, making it suitable for potable water systems. Its robust design ensures a reliable and safe operation under pressure.

• Lead-free for safe drinking water installations
• Corrosion-resistant forged brass body
• Full port design for unrestricted flow

Product Highlights

This valve features a lever-operated actuator and is suitable for commercial applications.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model Number: 101-333NL
• Category: Plumbing > Valves and Backflows > Brass Ball Valves

Technical Specifications

• Nominal Size: 1/2 in
• Body Material: DZR Forged Brass
• Ball Material: Polished Chrome Forged Brass
• Pressure Rating: 600 psi CWP
• Inlet to Outlet Length: 1.97 in
• Top to Inlet Center: 1.64 in
• Actuator Type: Lever Operated
• Standards/Approval: ANSI/ASME B16.18, ANSI/NSF 61, IAPMO Certified
