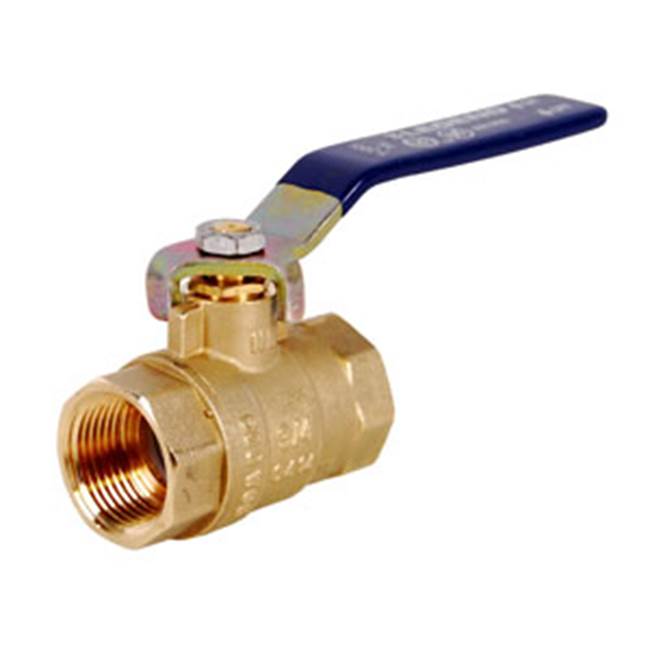

Legend Valve 101-324NL 3/4 T-2001 NL IPS Ball Valve

Product Description

The Legend Valve 101-324NL is a 3/4 inch IPS ball valve designed for plumbing applications. It features a lead-free design compliant with plumbing laws, ensuring safety for potable water installations. The valve can handle a maximum pressure rating of 600 psi CWP and is ideal for various water conditions.

• Lead-free construction for safe drinking water systems
• Blow-out proof stem for reliable sealing
• Corrosion-resistant forged brass body and components

Product Highlights

This ball valve offers a full port design that maximizes flow and minimizes pressure loss. It is suitable for both residential and commercial applications and is easy to install with female threaded connections.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 101-324NL

Technical Specifications

• Nominal Size: 3/4 inch
• Actuator Type: Lever Operated
• Body Material: DZR Forged Brass
• Ball Material: Polished Chrome Forged Brass
• Pressure Rating: 600 psi CWP
• End Connection Style: FNPT
• Length from Inlet to Outlet: 2.28 inches
• Height from Top to Inlet Center: 1.84 inches
