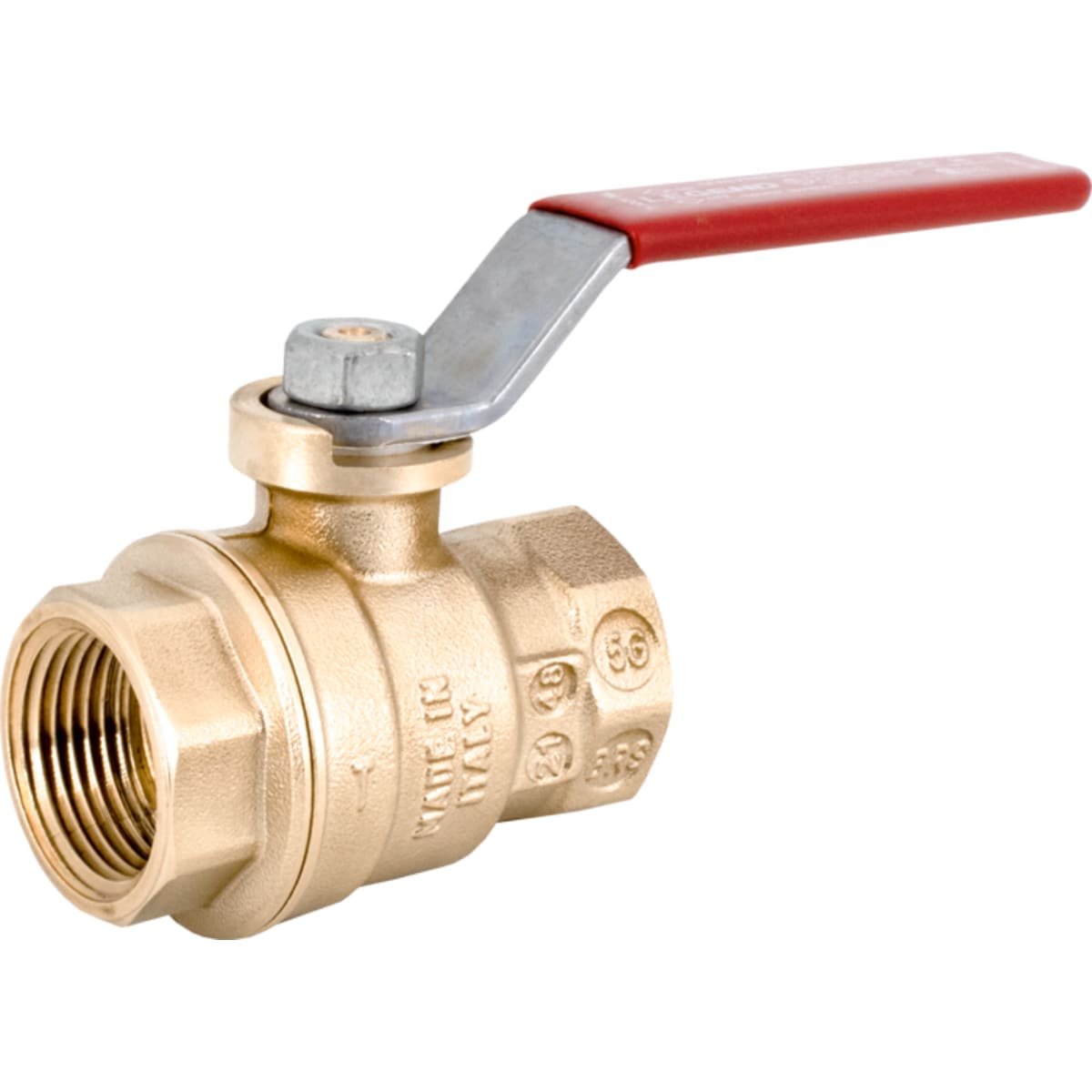

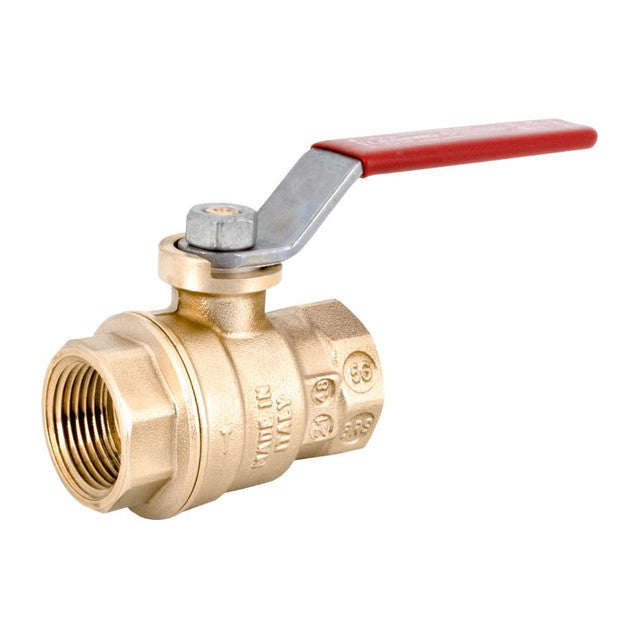

Legend Valve 101-300 1/8 T-1001 Brass Ball Valve

Product Description

The LEGEND VALVE 101-300 is a full-port ball valve with a 1/8 inch nominal size and FNPT connection type. It features a forged brass body and a lever handle operator. The valve is pressure rated to 150 PSI (WSP) and 600 PSI (CWP). The T-1001 also has a corrosion-resistant Dacromet-coated steel handle.

• Full-Port design
• Durable forged brass body
• Bottom loaded Blow-out proof stem

Product Highlights

This ball valve is suitable for various applications requiring reliable flow control. It is MSS-SP-110 compliant, CSA certified, and UL listed 44R8.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-300
• Country of Origin: Italy

Technical Specifications

• Series/Model: Model T-1001
• Nominal Size: 1/8 IN
• Connection Type: FNPT
• Pressure Rating: 150 PSI (WSP), 600 PSI (CWP)
• Body Material: Forged Brass
• Operator Type: Lever Handle
• Handle Material: Steel
• Stem Material: Forged Brass
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
• Seat Material: TFM
• Seal Material: Viton O-Ring
• Body Material Specification: UNS C37700
• Finish/Color: Chrome Plated Ball, Dacromet Coated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA Certified, UL Listed 44R8, ANSI/ASME B1.20.1
• Lead Free: No
• Orifice Size: 0.31 in
• Inlet to Outlet Length: 1.54 in
• Top to Inlet Center: 1.02 in
• Port Type: Full
• End Style: FNPT
• Configuration: FNPT x FNPT
