Legend Valve 101-295 Ball Valve 1 in Nominal

Product Description

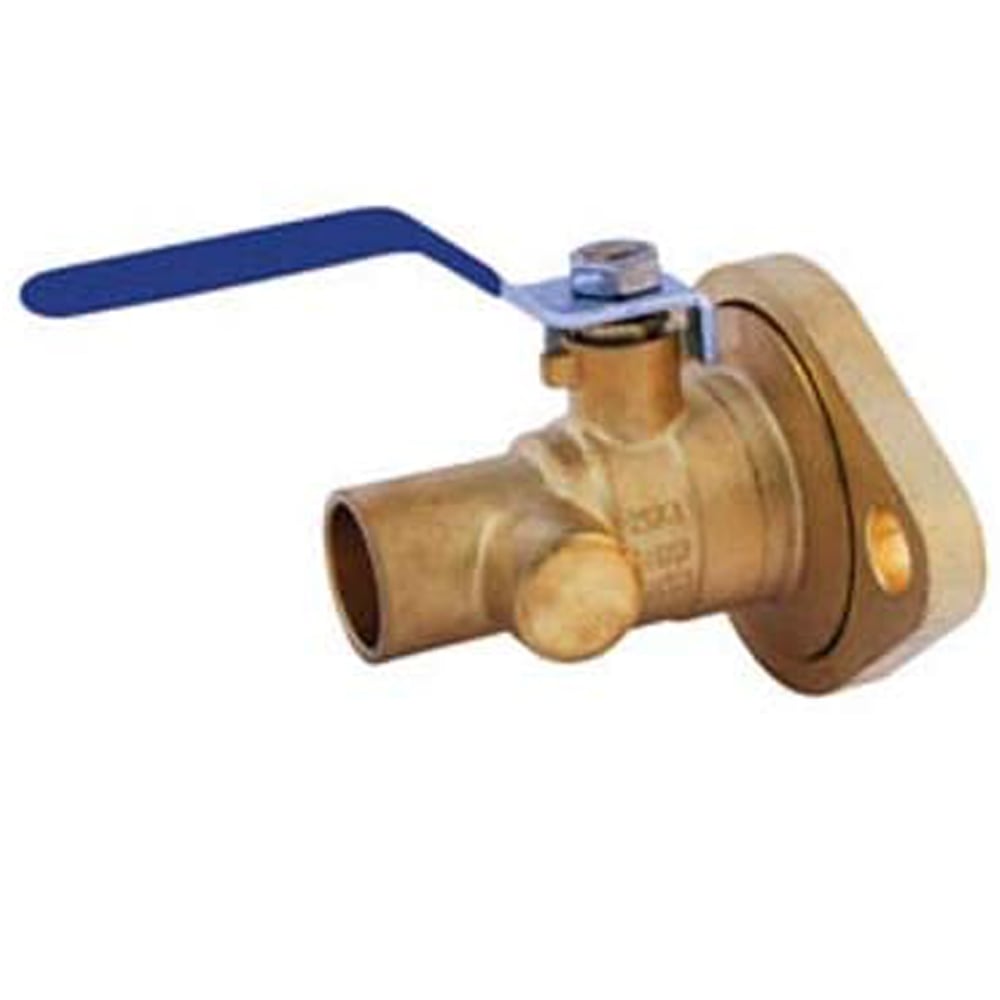

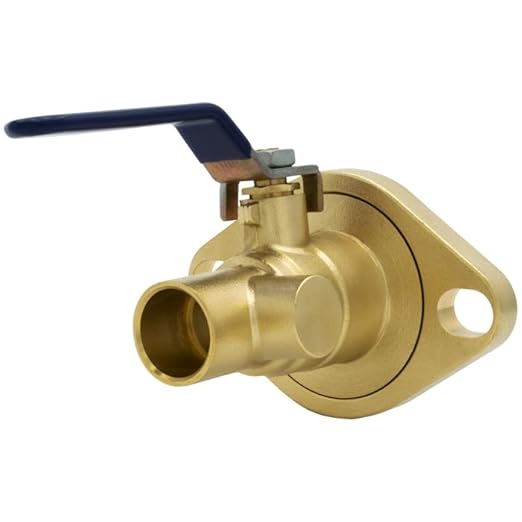

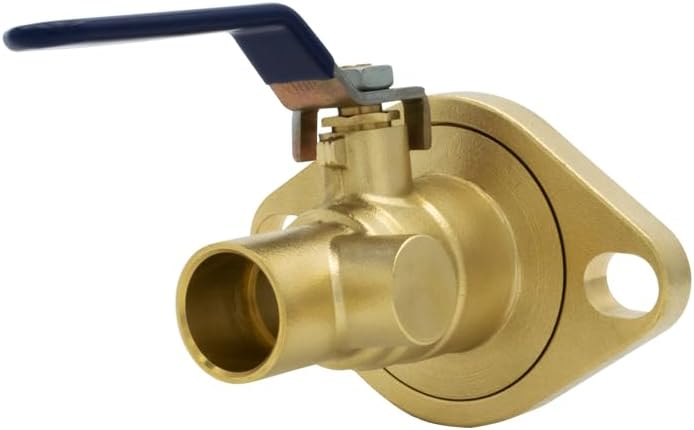

The Legend Valve 101-295 is a ball valve with a rotating flange, featuring a 1 in nominal size and a copper x flange connection. It is designed for isolation and allows pump removal without complete system drain-down. The valve features a full port design that does not affect pump flow volumes.

• Standard diamond-shaped pump flange connection rotates, allowing infinite valve positioning.
• Positive-seal, blow-out proof stem features dual PTFE packing and EPDM rubber O-Ring seals.
• Durable forged brass construction.

Product Highlights

Ideal for circulator pump isolation, this ball valve features a full port design and durable forged brass construction.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-295

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: C x Flanged
• Inlet to Outlet Length: 3-1/2 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: S-2011RFLG
• Top to Inlet Center: 0.91 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Type: Isolation
• Brand: Legend
• Manufacturer: Legend
• Product Type: Ball Valve
