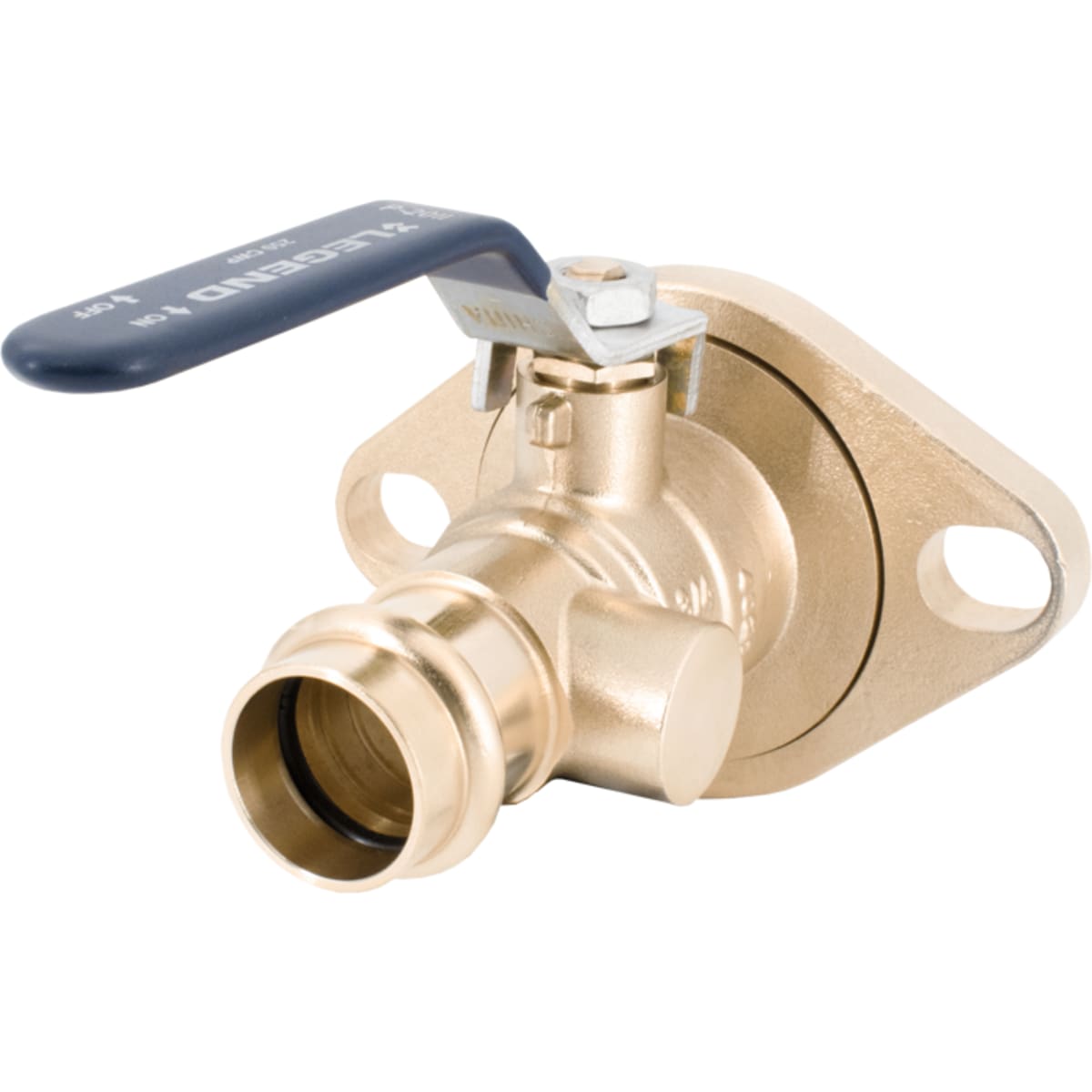

Legend Valve 101-285 1 P2011 PRESS ISOLATION W/O PU

Product Description

The Legend Valve 101-285 is a reliable press isolation ball valve. This valve is designed for a nominal size of one inch and features a press x flanged end style. It can handle pressures up to six hundred psi CWP, making it suitable for various applications. The valve has a full port design that allows for optimal flow.

• Isolation valve suitable for hydronic heating systems
• Lever operated actuator for easy use
• Rotating flange for versatile installation

Product Highlights

This valve is ideal for isolating circulator pumps, allowing for maintenance without draining the entire system, thus saving time and effort.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 101-285

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: Press x Flanged
• Inlet to Outlet Length: 3.72 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Top to Inlet Center: 2.48 inches
• Trim Material: Forged Brass Stem and PTFE Seat
• Series: P-2011
