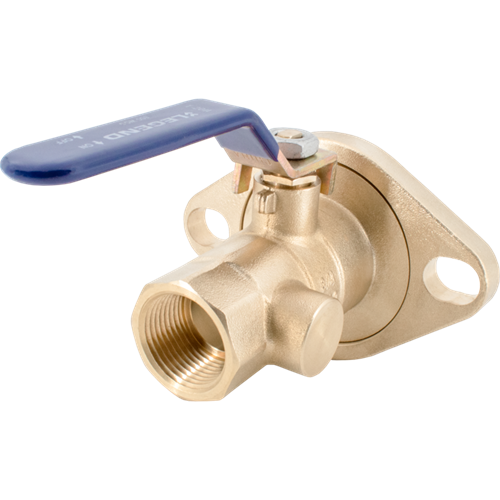

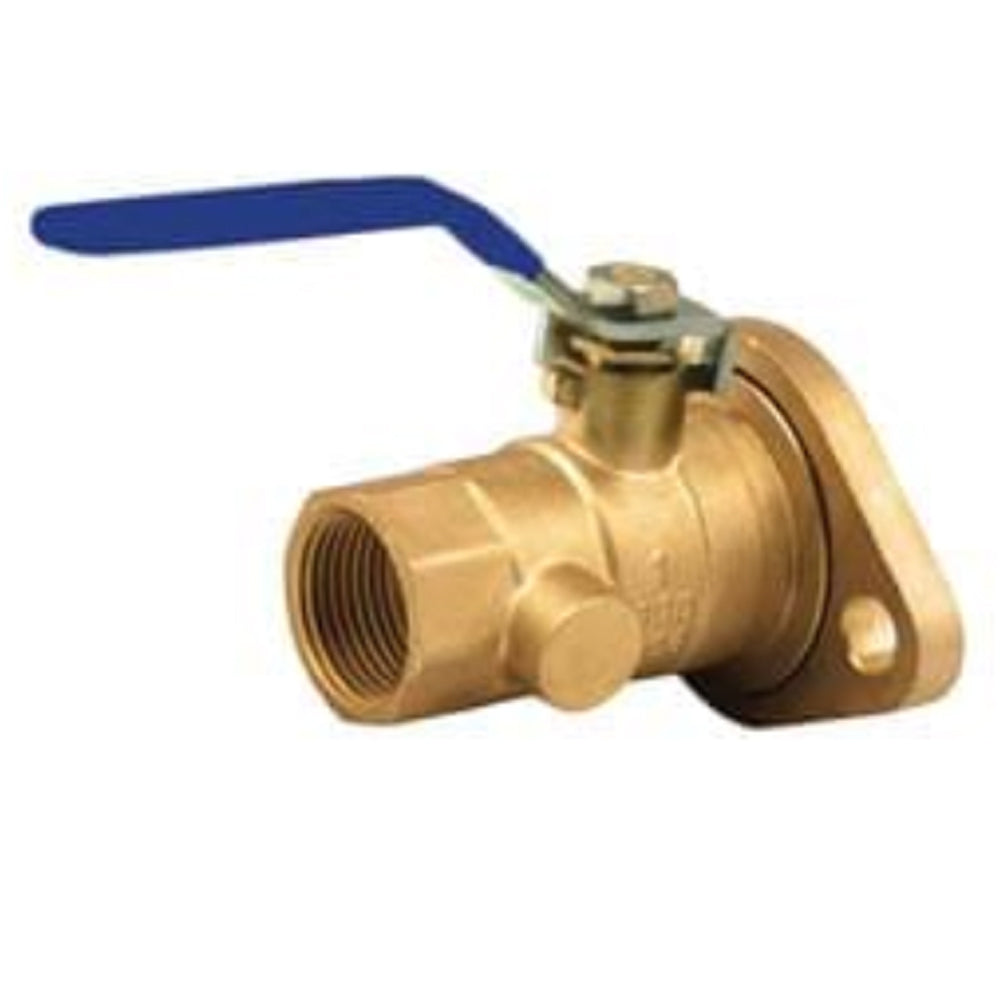

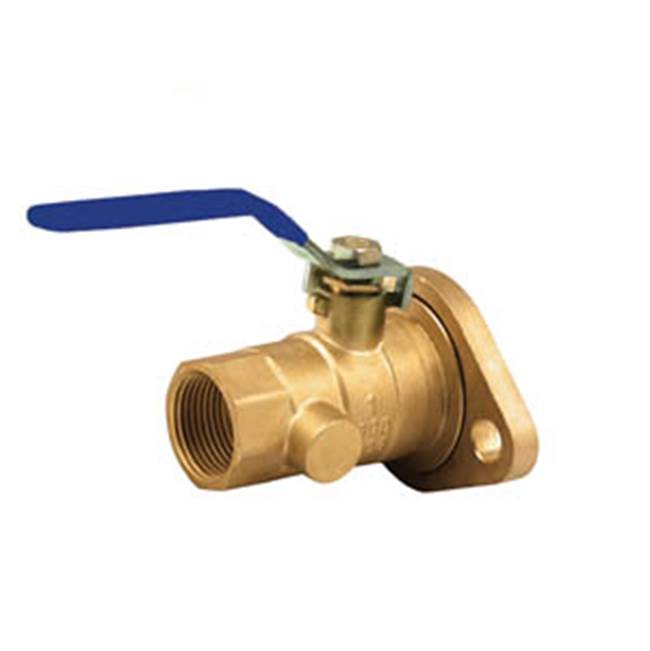

Legend Valve 101-276 T2011RFLG W/O Purge Vlv 1-1/4 inch

Product Description

The LEGEND VALVE 101-276 is an isolation ball valve from the T-2011RFLG series, designed for cold expansion applications. This 1-1/4 inch nominal valve features a full port design and FNPT x Flange end style. Constructed from durable forged brass with a polished chrome forged brass ball and PTFE seat trim, it is rated for 600 psi CWP pressure. It includes a rotating flange for flexible installation.

• Without purge
• Standard diamond-shaped pump flange connection rotates, to allow infinite valve positioning
• Positive-seal, Blow-out proof stem features dual PTFE packing and EPDM rubber O-Ring seals

Product Highlights

Durable forged brass isolation ball valve with rotating flange and full port design for efficient flow and flexible installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-276
• Country of Origin: China

Technical Specifications

• Valve Type: Isolation Valve with Rotating Flange
• Series: T-2011RFLG
• Connection Type: FNPT x Flange
• Port Type: Full
• Manufacturer: LEGEND VALVE
• Size: 1-1/4 in
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Trim Material: Forged Brass Stem and PTFE Seat
• Country of Origin: China
• Pressure Rating: 600 psi CWP
• Top To Inlet Center: 0.79 in
• Inlet To Outlet Length: 3.66 in
• UPC: 662545082028
