Legend Valve 101-275 T2011RFLG W/O Purge Valve 1 in

Product Description

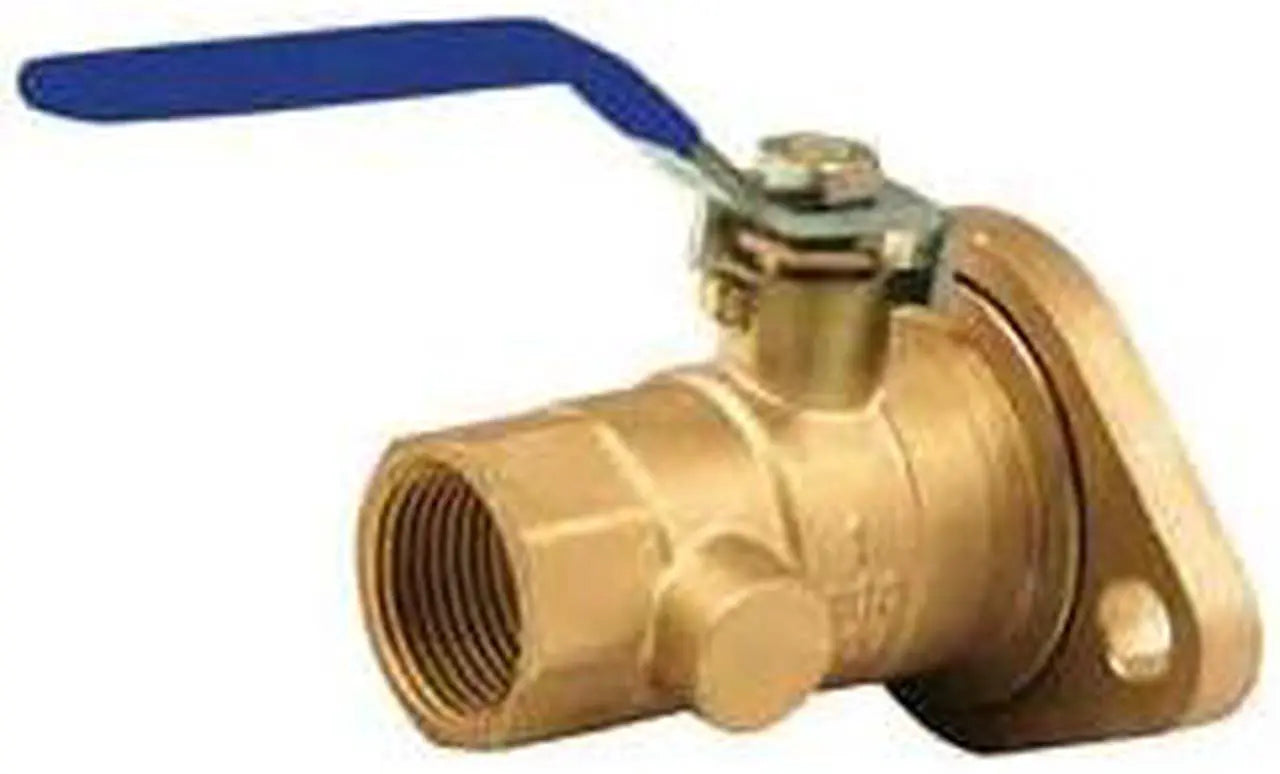

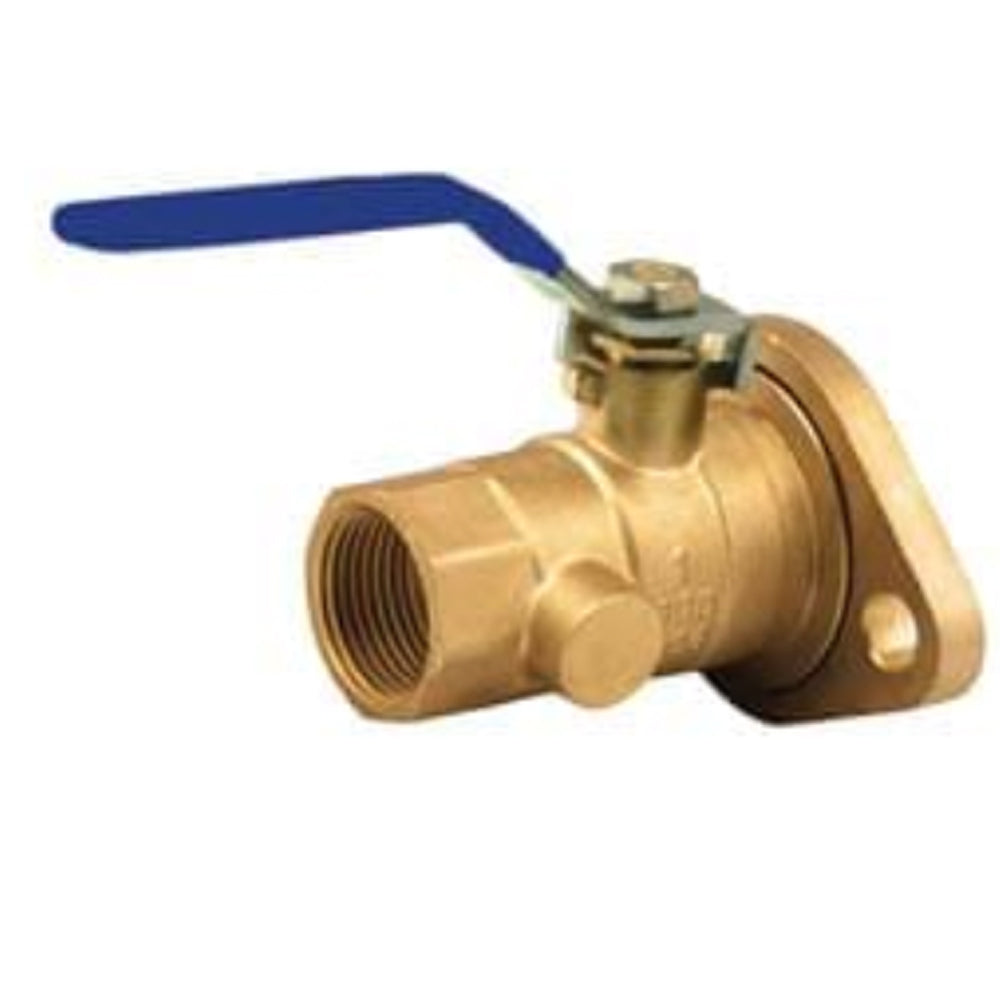

The LEGEND VALVE 101-275 is an isolation ball valve from the T-2011RFLG series, designed for reliable fluid control. This 1 inch nominal valve features an FNPT x Flange end style and is rated for 600 psi CWP pressure. Constructed with a forged brass body and a polished chrome forged brass ball, it ensures durability. The full port design supports unrestricted flow, making it suitable for various industrial and plumbing applications requiring a robust shut-off mechanism.

• Full port design ensures unrestricted flow volumes.
• Features a positive-seal, blow-out proof stem with dual PTFE packing and EPDM rubber O-Ring seals.
• Durable forged brass construction for the body and polished chrome forged brass ball.

Product Highlights

Rotating flange allows for flexible installation and infinite valve positioning.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-275
• Country of Origin: China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Country of Origin: China
• Connection Type: FNPT x Flange
• Inlet to Outlet Length: 3.39 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-2011RFLG
• Top to Inlet Center: 0.79 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Valve Type: Isolation Ball Valve
• Feature: Rotating Flange
• Purge Valve: Without Purge
