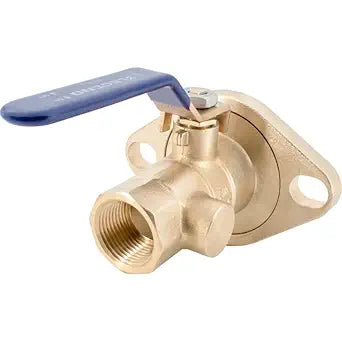

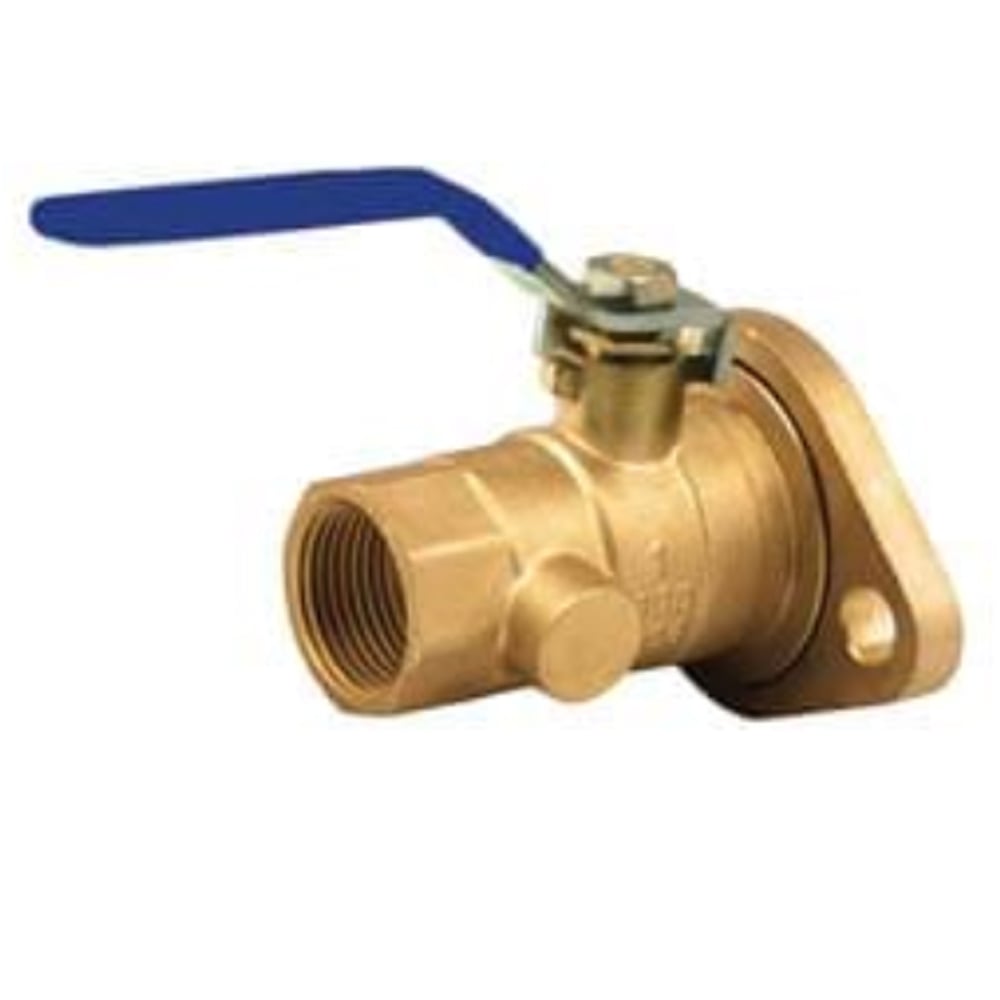

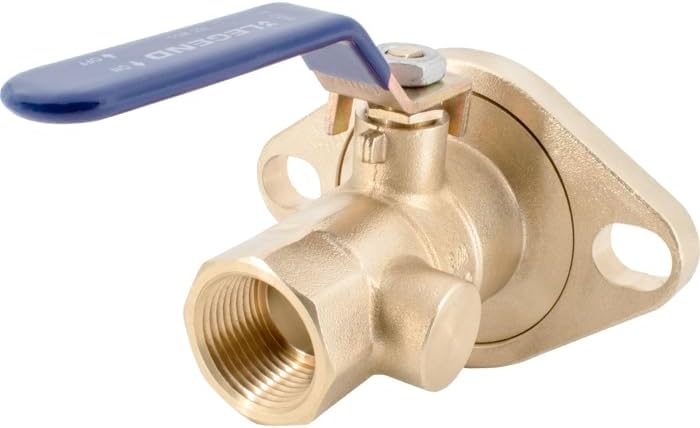

Legend Valve 101-274 T2011RFLG W/O Purge Valve 3/4 in

Product Description

The LEGEND VALVE 101-274 is a ball valve from the T-2011RFLG series, designed for isolation purposes. Featuring a 3/4 in nominal size and FNPT x Flange end style, it withstands pressure up to 600 psi CWP. Its full port design ensures that pump flow volumes are not affected. Constructed from durable forged brass.

• Standard diamond-shaped pump flange connection rotates, to allow infinite valve positioning
• Full port design does not affect pump flow volumes
• Durable forged brass construction

Product Highlights

Ideal for circulator pump isolation, this valve allows pump removal without complete system drain-down. It features a rotating flange and is not recommended for steam service.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-274
• Country of Origin: China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT x Flange
• Inlet to Outlet Length: 3.03 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-2011RFLG
• Top to Inlet Center: 0.63 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Type: Isolation
• Product Type: Ball Valve
• Equivalent Part Number: 101274
• Pipe Size: 3/4 in
• Connection Type: FNPT x Flange
• Standards: 600 CWP
