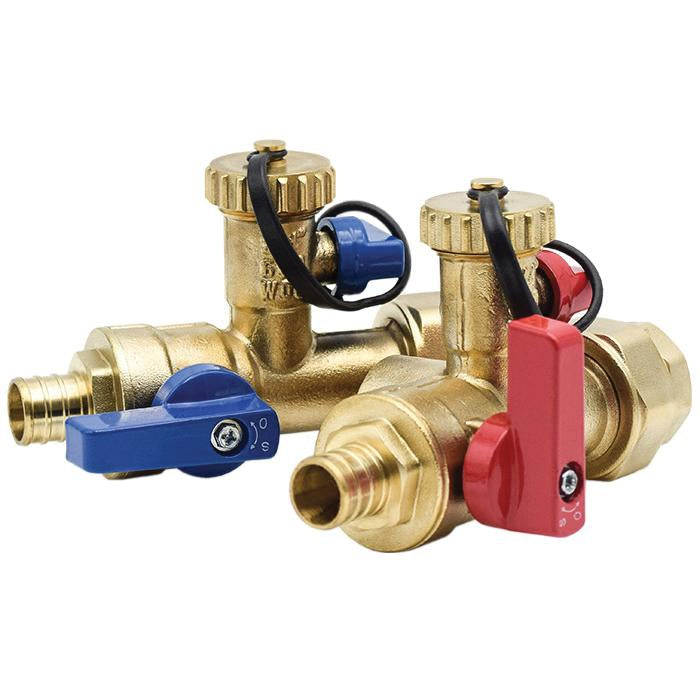

Legend Valve 101-251NL F1807 PEX NL Tankless Water Heater Valve with PRV 3/4 inch

Product Description

The LEGEND VALVE 101-251NL is a tankless water heater service valve kit designed for plumbing, commercial, industrial, and radiant hydronic applications. This lead-free valve features a 3/4 inch FNPT x 3/4 inch PEX Crimp connection and is constructed from forged brass, ensuring durability. It is rated for 400 WOG and includes an integrated PEX adapter, simplifying installation and reducing potential leak points for efficient water system management.

• Equipped with 3/4 inch FNPT x F1807 Crimp PEX connections, rated for 400 WOG.
• Constructed from durable forged brass, suitable for plumbing, commercial, industrial, and radiant hydronic systems.
• Meets multiple standards including ASSE 1061, ASTM F1807, and NSF 61 for quality assurance.

Product Highlights

Integrated PEX adapter and pressure relief valve simplify installation and enhance safety.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-251NL
• Country of Origin: Imported

Technical Specifications

• Domestic/Import: Import
• Material: Forged Brass
• Series: NL F1807
• Product Type: Valve Kit
• Nominal Size: 3/4 inch
• Connection Type: FNPT x F1807 Crimp PEX
• Max Operating Pressure: 400 WOG
• Type: Tankless
• Lead Free: Yes
• Standards: ASSE 1061, ASTM F1807/1960/2159/2098/2080, CAN/ULC S102.2, ASTM E84, ICC-ES PMG-1363, NSF 61 and NSF 14, ASTM F2769
• PRV Rating: 200K BTU
• Kit Components: Gas ball valve, 2 Black iron pipe nipples
