Legend Valve 101-135NL P-203NL Ball Valve 1 in MNPT x Press

Product Description

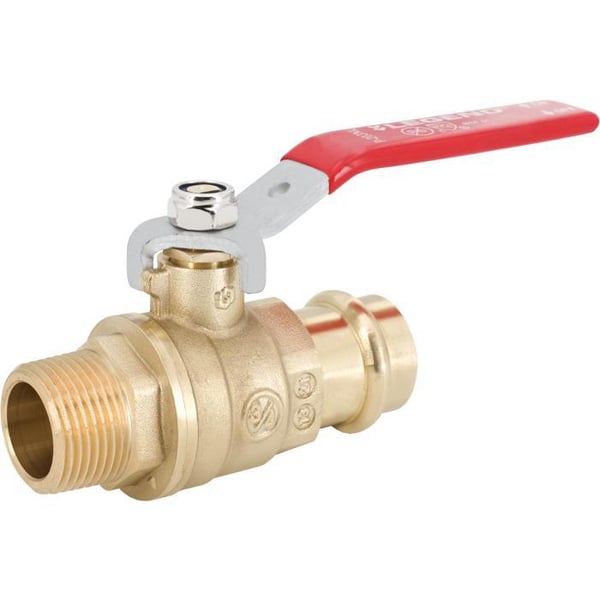

The LEGEND VALVE 101-135NL P-203NL is a full port transition ball valve with copper Press x MNPT end style. Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing. End connections are compatible with commercially-available VUS profile jaws.

• Full port transition ball valve
• Copper Press x MNPT or FNPT
• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing

Product Highlights

This ball valve features a forged brass body and chrome plated forged brass ball, suitable for various plumbing applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-135NL
• Country of Origin: Import

Technical Specifications

• Ratings: 250 CWP, Max Temp 250 °F, NSF / ANSI 14, NSF / ANSI 61
• Size: 1"
• Configuration: Press x MNPT
• Ball Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: MNPT x Press
• Inlet to Outlet Length: 3.75 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: P-203NL
• Temperature Rating: 250 deg F
• Top to Inlet Center: 2.30 in
• Trim Material: PTFE
• Lead Free: Yes
• Material: Brass
• Pressure Rating - Cold Working: 250
• Pressure Rating - Water, Oil, Gas: 250
• Connection: Press x MPT
