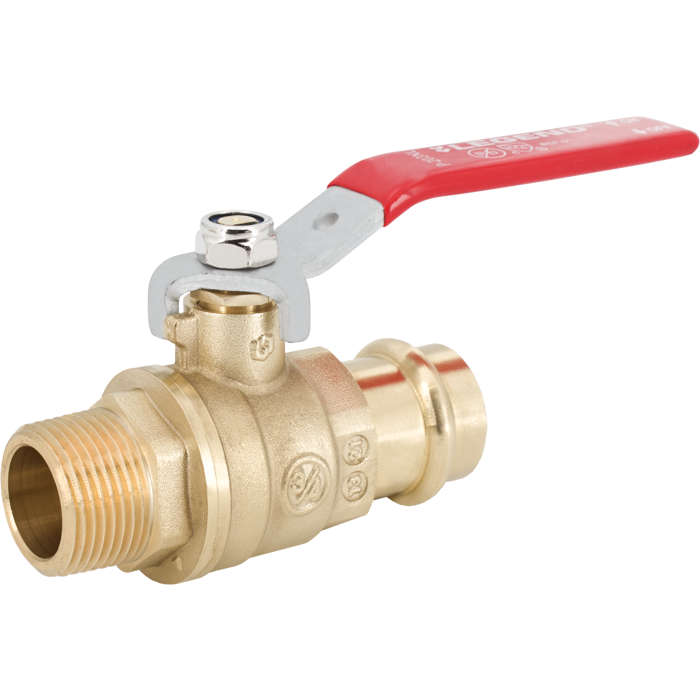

Legend Valve 101-134NL 3/4P203NL MNPTxPRESS Ball VAL

Product Description

The Legend Valve 101-134NL is a ball valve from the P-203NL series. This valve features a three-fourths inch nominal size with a MNPT x Press end style. It can handle pressures up to two hundred fifty psi and temperatures up to two hundred fifty degrees Fahrenheit. The valve is constructed with chrome plated forged brass for enhanced durability. The inlet to outlet length measures three point four inches and the top to inlet center distance measures one point nine two inches.

• Full port transition ball valve
• Copper Press x MNPT or FNPT
• Press-to-connect end connections suitable for ASTM B88 types K, L, and M

Product Highlights

This valve is ideal for connecting to ASTM B88 types K, L, and M hard-drawn copper tubing, making it suitable for various plumbing applications.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: P-203NL

Technical Specifications

• Ball Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• End Style: MNPT x Press
• Inlet to Outlet Length: 3.40 inches
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 1.92 inches
• Trim Material: PTFE
• Domestic/Import: Import
