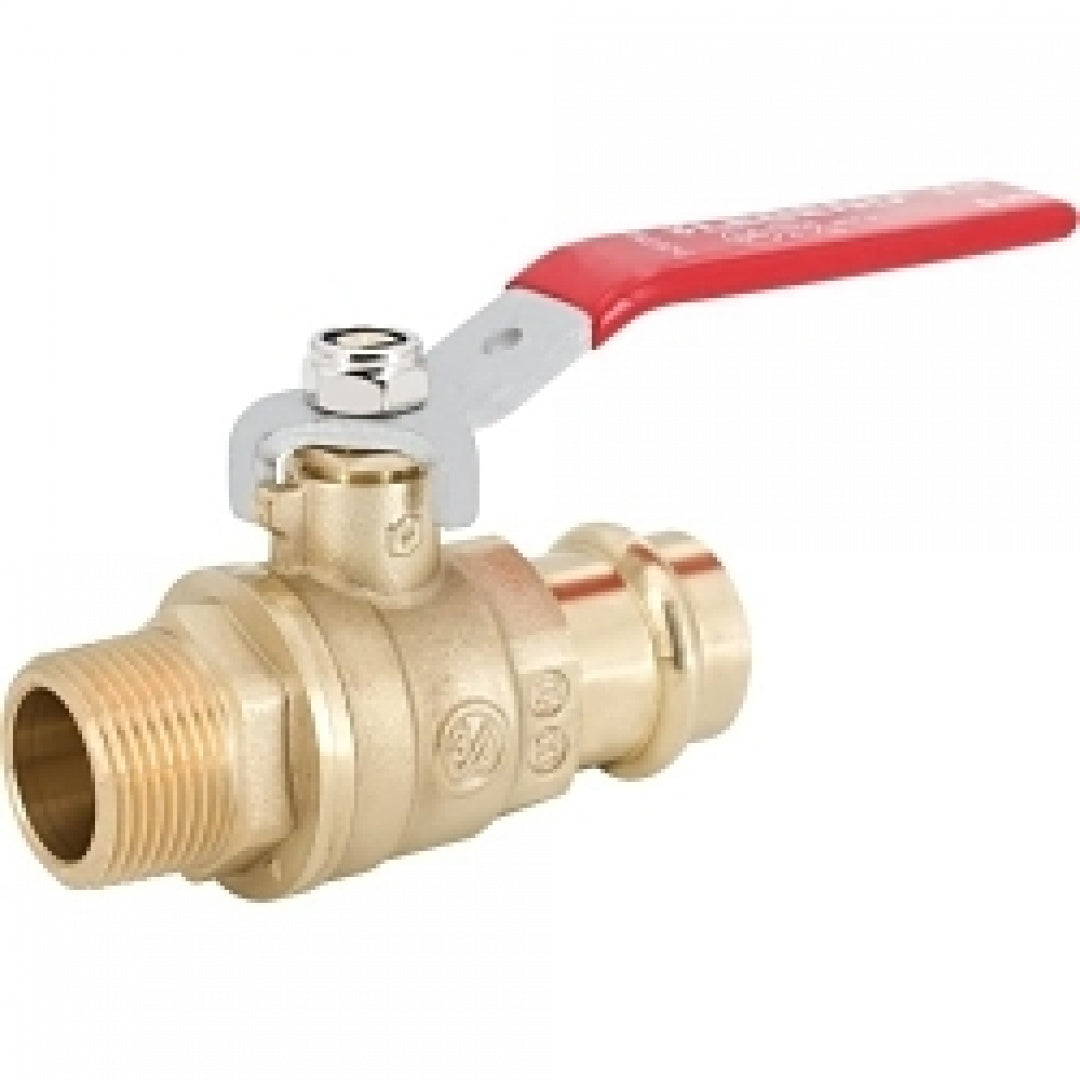

Legend Valve 101-133NL P203NL MNPTxPRESS Ball Valve 1/2 in

Product Description

The LEGEND VALVE 101-133NL is a P-203NL series ball valve with a 1/2 in nominal size and MNPT x Press end style. It has a 250 psi pressure rating and a temperature rating of 250 deg F. The valve features a full port and a chrome-plated forged brass ball with PTFE trim. Designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing.

• Full port transition ball valve
• Copper Press x MNPT or FNPT
• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing

Product Highlights

This LEGEND VALVE ball valve is suitable for various plumbing and heating applications requiring a reliable shutoff mechanism.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-133NL

Technical Specifications

• Ball Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• End Style: MNPT x Press
• Inlet to Outlet Length: 3.12 in
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: P-203NL
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.66 in
• Trim Material: PTFE
• Configuration: Press x MNPT
