Legend Valve 101-110 T-1001 Ball Valve (3 in)

Product Description

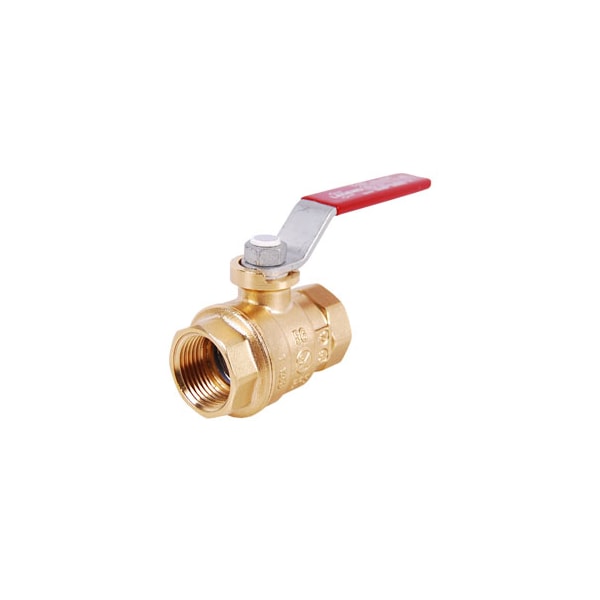

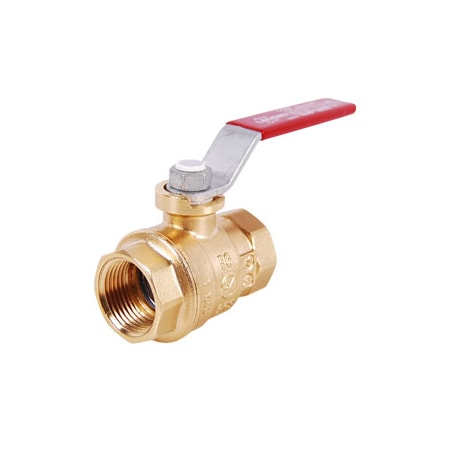

The Legend Valve 101-110 is a T-1001 3 in full-port ball valve with FNPT end connections, a forged brass body, and a polished chrome forged brass ball. It is rated 400 psi cold working pressure (CWP), supports up to 150 psi saturated steam, and uses TFM PTFE seats with a polished chrome stem. Inlet-to-outlet length is 6.3 in and top-to-inlet-center is 4.33 in; the valve includes a blow-out proof stem.

• Forged brass body and polished chrome forged brass ball with TFM PTFE seat trim
• Rated 400 psi CWP and up to 150 psi saturated steam; full-port design for unrestricted flow
• FNPT end connections; inlet-to-outlet length 6.3 in and top-to-inlet-center 4.33 in

Product Highlights

Full-port forged brass ball valve, 3 in, 400 psi CWP, TFM PTFE seats

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-110
• Country of Origin: Italy

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 101-110
• Series: T-1001
• Nominal Size: 3 in
• Connection Type: FNPT x FNPT
• Port Type: Full port
• Body Material: Forged brass
• Ball Material: Polished chrome forged brass
• Trim Material: Polished chrome forged brass stem; TFM PTFE seat
• Pressure Rating: 400 psi CWP
• Steam Rating: 150 psi saturated steam
• Inlet to Outlet Length: 6.3 in
• Top to Inlet Center: 4.33 in
• Standards / Pressure Ratings: 150 WSP; 400 CWP (2-1/2 in - 4 in); 600 CWP
• Country of Origin: Imported
• UPC: 662545000282
