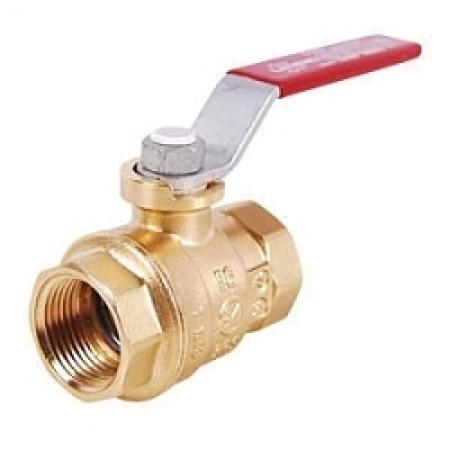

Legend Valve 101-109 T-1001 Ball Valve 2-1/2 in

Product Description

The Legend Valve 101-109 T-1001 is a 1-piece ball valve with a 2-1/2 in nominal size and FNPT x IPS end style. Suitable for oil, steam, and water media, it features a lever-operated actuator and a full port. The valve has a pressure rating of 400 psi and utilizes a brass ball, brass body, brass stem, and PTFE seat trim.

• Anti-corrosive Dacromet coated handle and tamper-evident nut.
• Forged brass body, end adapter, and cavity ball for durability.
• Bottom-loaded stem is Blow-out proof.

Product Highlights

This Legend Valve ball valve is maintenance-free and CSA certified for various gas mixtures, making it suitable for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 101-109
• Country of Origin: Italy

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT x IPS
• Media: Oil/Steam/Water
• Nominal Size: 2-1/2 in
• Port Type: Full
• Pressure Rating: 400 psi
• Series: T-1001
• Softgoods Material: TFM/PTFE
• Trim Material: Brass Stem and PTFE Seat
• Type: 1-Piece
• Manufacturer: LEGEND VALVE
• Connection Type: FNPT
• Flow Coefficient (Cv): 277.32 Cv
• Handle Material: Steel
• Inlet to Outlet Length: 5-3/4 in
• Material Standard: ASTM B124, ASTM 124M UNS C37700, ASTM A510 UNS G10060
• Seat Material: PTFE
• Stem Material: Brass
• Top to Inlet Center: 4.01 in
• Standards: 150 WSP, 400 CWP (2-1/2” - 4”), 600 CWP
