Legend Valve 101-101 1/4 inches T-1001 Ball Valve

Product Description

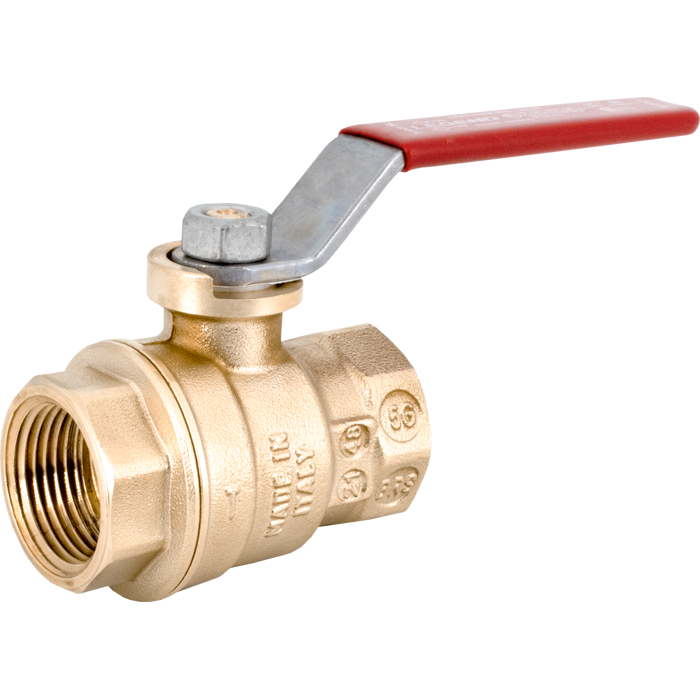

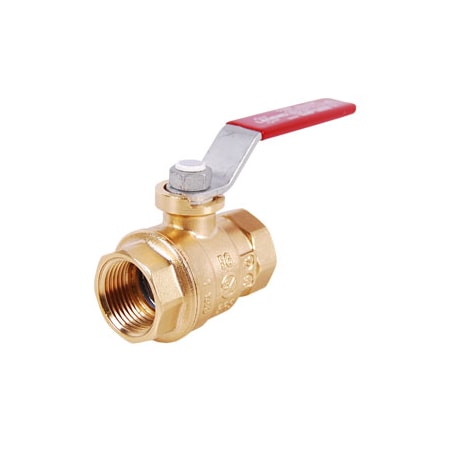

The LEGEND VALVE 101-101 is a 1/4" T-1001 forged brass full port ball valve with a threaded end configuration and Viton dual o-ring stem design. It features a tamper-evident locking seal, Dyneon TFM PTFE seats, and a self-cleaning chrome-plated ball. The valve also has a corrosion-resistant Dacromet-coated steel handle.

• Forged Brass construction
• Full Port design
• Equipped with a Viton dual o-ring stem design

Product Highlights

This full port ball valve features a self-cleaning chrome-plated ball and a corrosion-resistant Dacromet-coated steel handle.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-101
• Country of Origin: Italy

Technical Specifications

• Size [Specifications]: 1/4"
• Standards [Specifications]: 150 WSP, 400 CWP (2-1/2"), 600 CWP
• Connection Type [Specifications]: FNPT x FNPT
• Country of Origin (subject to change) [Specifications]: Italy
• UPC: 662545000190
• Ratings: 150 WSP
• CWP: 600 CWP
• Size: 1/4"
• Configuration: FNPT x FNPT
