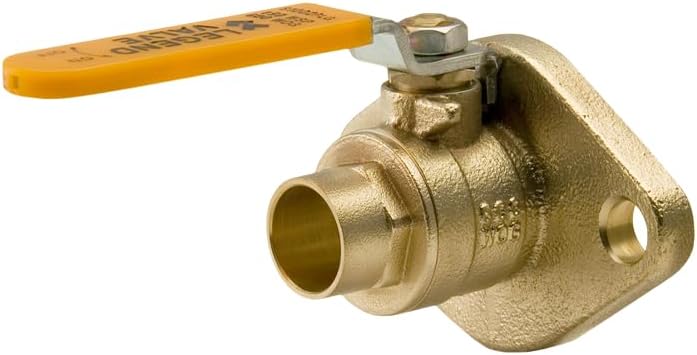

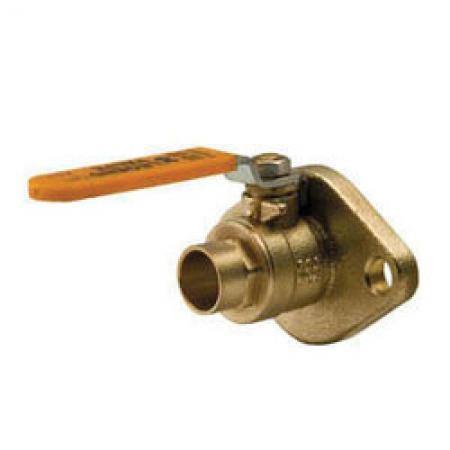

Legend Valve 101-095 S-1002FLG Swt X Flg 1 in

Product Description

The LEGEND VALVE 101-095 is a Series S-1002FLG isolation ball valve with a 1 in nominal size and C x Flanged end style. It features a cast bronze body, a polished chrome forged brass ball, and a forged brass stem with PTFE seat trim. Designed for 600 psi CWP with a 0.984 in orifice.

• 150 psi steam working pressure
• Forged Brass construction
• Suitable for water

Product Highlights

This LEGEND VALVE ball valve is ideal for isolation applications, featuring a forged brass stem and PTFE seat trim.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-095

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Cast Bronze
• End Style: C x Flanged
• Inlet to Outlet Length: 2.697 in
• Nominal Size: 1 in
• Orifice Size: 0.984 in
• Pressure Rating: 600 psi CWP
• Series: S-1002FLG
• Top to Inlet Center: 2.008 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Type: Isolation
• Manufacturer: LEGEND VALVE
• Suitable Media: Water
