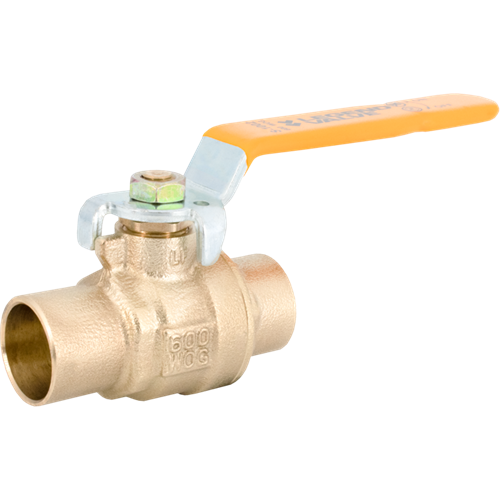

Legend Valve 101-086NL 1-1/4 S1002 No Lead Ball Valve

Product Description

The Legend Valve 101-086NL is a one and one-quarter inch no lead ball valve, designed for various plumbing applications. This valve ensures efficient water flow while complying with no-lead plumbing laws. Its robust structure is built to last under high pressure, suitable for both residential and commercial plumbing.

• Lead-free design complies with no-lead regulations.
• Durable brass body with polished chrome finish.
• Full port for maximum flow capacity.

Product Highlights

This ball valve features a bottom-loaded, blow-out proof stem, ensuring safety during operation. It is equipped with PTFE seats for durability and performance. Ideal for potable water installations, it maintains high standards in plumbing components.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545082387

Technical Specifications

• Series: S-1002NL
• Nominal Size: 1-1/4 inches
• Body Material: Forged Brass
• Ball Material: Polished Chrome Forged Brass
• Trim Material: Forged Brass Stem and PTFE Seat
• Pressure Rating: 600 psi CWP
• Inlet to Outlet Length: 3.78 inches
• Top to Inlet Center: 2.52 inches
• Port Type: Full
• End Style: C
• Domestic/Import: Import
