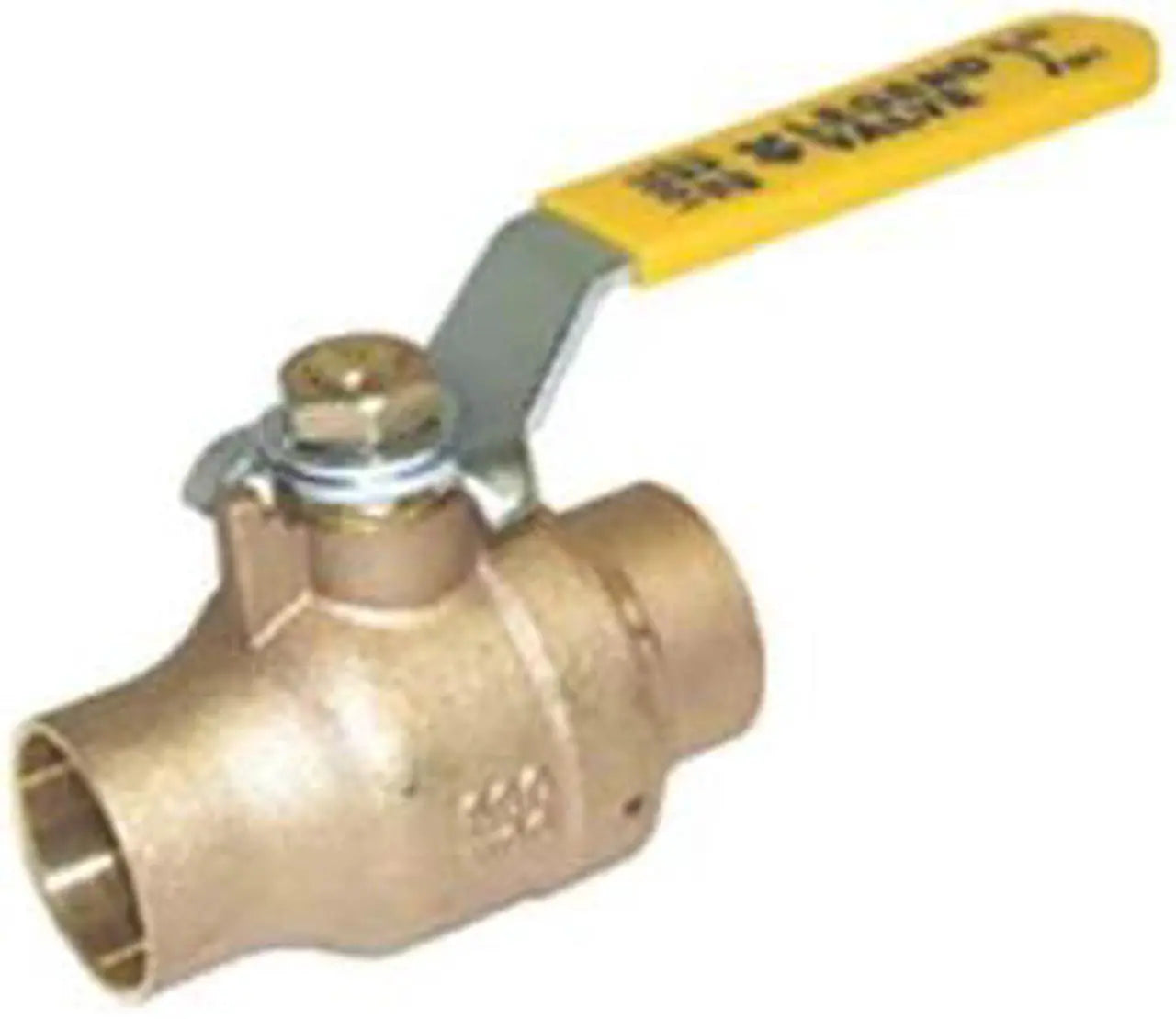

Legend Valve 101-085 S-1002 Ball Valve 1 in

Product Description

The LEGEND VALVE 101-085 S-1002 ball valve features a 1-inch nominal size and is suitable for use with natural, manufactured, and mixed LP gas/air mixtures. It has a forged brass body and a polished chrome forged brass ball. The valve is designed with an adjustable gland follower stem and a bottom-loaded, PTFE isolated, blow-out proof stem.

• Durable forged brass body
• Bottom loaded, PTFE isolated, blow-out proof stem
• Adjustable gland follower stem design

Product Highlights

This full port ball valve has a gland follower design and is constructed from forged brass. It meets ANSI/ASME B16.18 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-085
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: C
• Inlet to Outlet Length: 3.31 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: S-1002
• Top to Inlet Center: 2.13 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards: 150 WSP, 600 CWP
• Connection Type: Sweat x Sweat
• Product Type: Ball Valve
• Pipe Size: 1 in
• Ball Port Style: Full Port
• Brand: LEGEND VALVE
