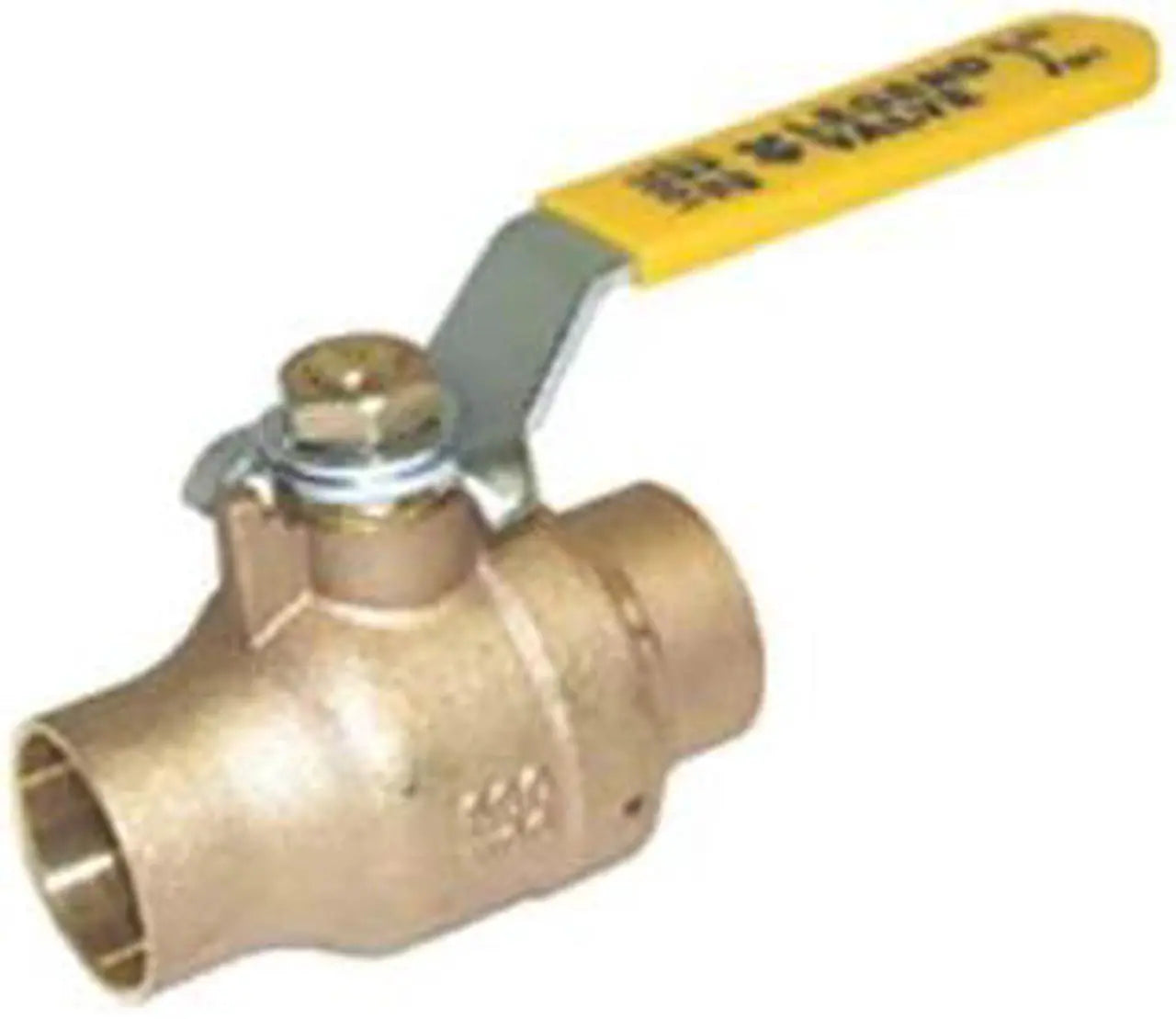

Legend Valve 101-084 S-1002 Ball Valve 3/4 inches

Product Description

The LEGEND VALVE 101-084 S-1002 ball valve features a 3/4 in nominal size and is suitable for use with natural, manufactured, and mixed LP gas/air mixtures. It has a forged brass body and a 316 stainless steel ball. The valve is designed with an adjustable gland follower stem and a bottom-loaded, PTFE isolated, blow-out proof stem.

• Durable forged brass body
• Bottom loaded, PTFE isolated, blow-out proof stem
• Adjustable gland follower stem design

Product Highlights

This ball valve features a full port design and is cCSAus Certified, FM Approved and UL Listed.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-084
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: ASTM B124 UNS C37700 FORGED BRASS
• End Style: C
• Inlet to Outlet Length: 2.76 in
• Media: LIQUID PETROLEUM GAS, AIR MIXTURE, HOUSE/GAS PIPING SYSTEM
• Nominal Size: 3/4 INCH X 3/4 INCH
• Port Type: Full
• Pressure Rating: 600 PSI (CWP)
• Series: S-1002
• Top to Inlet Center: 1.97 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards [Specifications]: 150 WSP, 600 CWP
• Connection Type [Specifications]: Sweat x Sweat
• Applicable Standard: UL 2J73, WW-V-35C, MSS-SP-110, ISO 9002, FM, CSA (CANADA AND US), ANSI/NSF 61-8, ANSI/ASME B16.18, ANSI/ASME B16.33, ANSI Z21.15
• Application: LIQUID PETROLEUM GAS, AIR MIXTURE, HOUSE/GAS PIPING SYSTEM
• Inclusions/Features: GLAND FOLLOWER DESIGN, BOTTOM LOADED BLOWOUT PROOF STEM, STEEL HANDLE NUT, FORGED BRASS PACKING NUT/END ADAPTER
• End Connection: FEMALE SOLDERED X FEMALE SOLDERED
• Handle Material: ASTM A283 CLASS D STEEL
• Stem Packing Seal Material: DUPONT NON-STICK PTFE
• End to End Distance: 2.76 INCH
• Seat Material: DUPONT NON-STICK PTFE
• Stem Material: ASTM B16 UNS C36000 FORGED BRASS
• Flow Rating: 26 CV
• Model: S-1002
