Legend Valve 101-083 1/2 inches S-1002 Ball Valve

Product Description

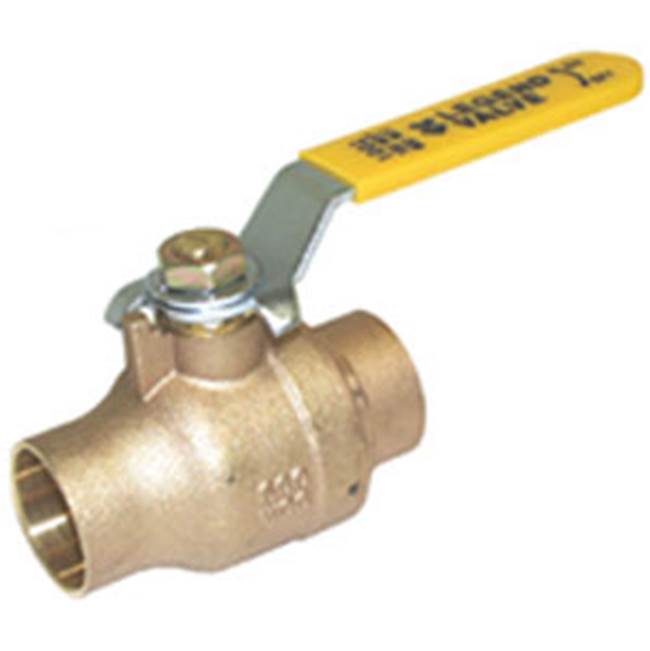

The LEGEND VALVE 101-083 is a 1/2" S-1002 ball valve with a full port. It features a durable forged brass body and a bottom loaded, PTFE isolated, blow-out proof stem. Designed with an adjustable gland follower stem. Suitable for use with natural, manufactured, and mixed LP gas/air mixtures.

• Durable forged brass body
• Bottom loaded, PTFE isolated, blow-out proof stem
• Adjustable gland follower stem design

Product Highlights

This LEGEND VALVE ball valve is constructed with a forged brass body and PTFE stem packing, offering durability and reliable performance in various applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-083
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: C
• Inlet to Outlet Length: 1.93 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: S-1002
• Top to Inlet Center: 1.54 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Size: 1/2"
• Standards: 150 WSP, 600 CWP
• Connection Type: Sweat x Sweat
• MPN: 101-083
• UPC: 662545005195
• Cold working pressure (PSI Cold Working Pressure): 600 PSI
• Saturated steam (WSP): 150 PSI
