Legend Valve 101-069NL T-1002NL Full Port Ball Valve 2-1/2 inches Threaded

Product Description

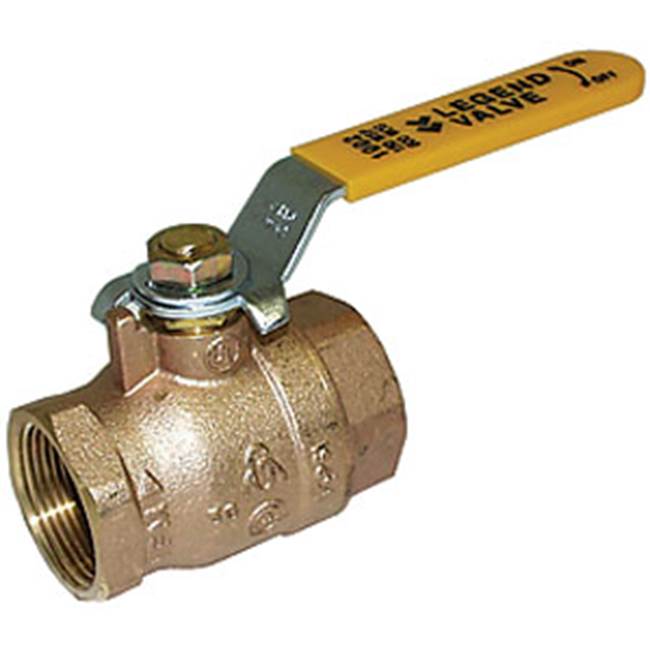

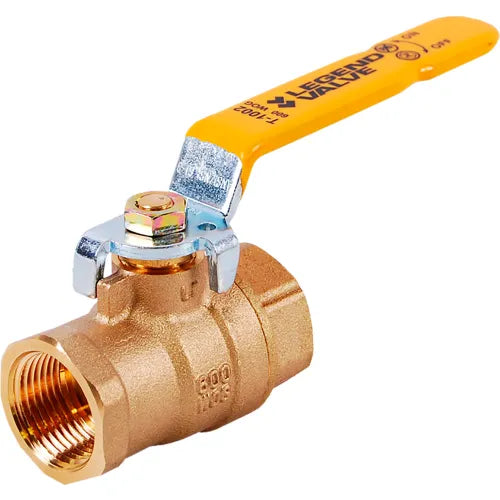

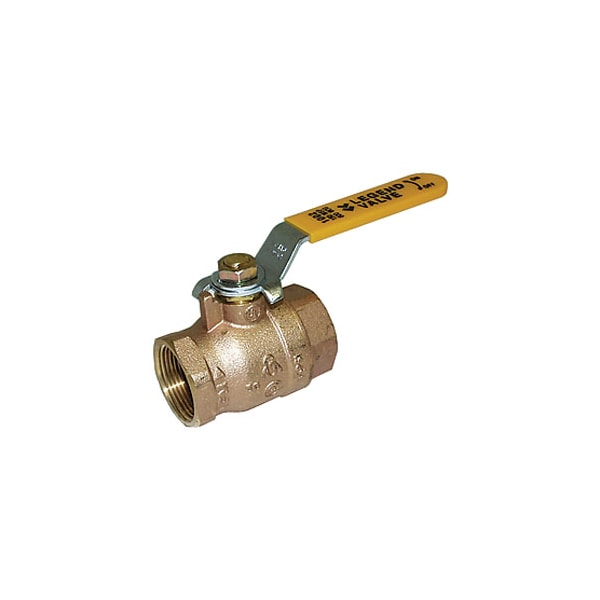

The LEGEND VALVE 101-069NL is a 2-1/2" no lead forged brass full port ball valve with a gland follower design. It features a bottom-loaded, blowout-proof stem with PTFE packing gland and forged brass packing nut, along with durable PTFE seats. The self-cleaning forged brass ball is chrome-plated to resist scale build-up. Suitable for potable water installations and compliant with lead-free plumbing laws.

• No Lead Forged Brass Full Port Ball Valve
• Bottom-loaded, blowout-proof stem
• Self-cleaning forged brass ball

Product Highlights

This lead-free ball valve is ideal for various plumbing applications, ensuring safe and reliable performance with its robust design and compliance with industry standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-069NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Legend Valve
• PSI: 400 psi CWP, 150 psi WSP
• Material: Lead Free Brass
• Size: 2-1/2
• Valve Type: Ball Valve
• Configuration: FNPT x FNPT
• Connection Style: FNPT
• Manufacturers Part Number: 101-069NL
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 5.16 in
• Nominal Size: 2-1/2 in
• Port Type: Full
• Pressure Rating: 400 psi CWP
• Series: T-1002NL
• Top to Inlet Center: 3.86 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Standards: 150 WSP, 600 CWP
• Pipe Size: 2-1/2 in
• Ball Port Style: Full Port
• Product Type: Ball Valve
