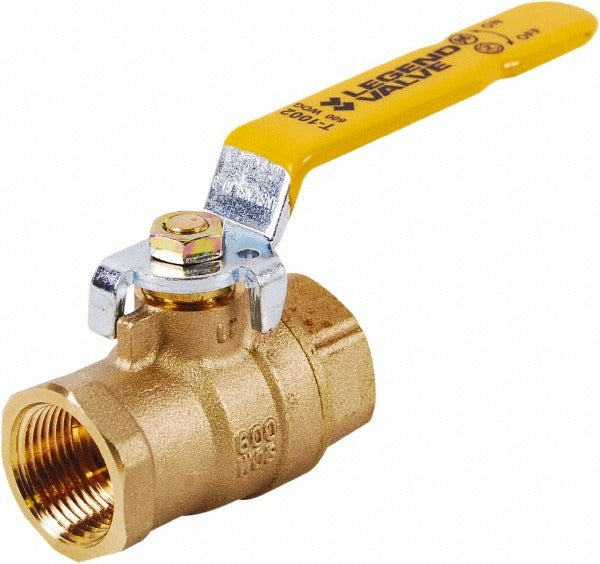

Legend Valve 101-068 Brass Ball Valve 2 in Fnpt Full Port

Product Description

The LEGEND VALVE 101-068 is a 2-way, full port manual ball valve designed for reliable shutoff and flow control in plumbing and mechanical systems. Built with a 2-piece brass body and FNPT x FNPT end connections in a 2-inch thread size, this valve delivers low-restriction flow thanks to its full port design. A steel lever handle provides quick quarter-turn operation. The PTFE-sealed ball ensures a tight shutoff across a range of media including potable water, grease, fuels, and gas service. It carries UL, CSA, FM, and NSF certifications, making it suitable for code-required installations.

This valve is suited for residential and light commercial plumbing, hydronic heating, fuel gas distribution, and irrigation systems. The full port configuration minimizes pressure drop, which is especially important in applications where flow efficiency matters. FNPT x FNPT connections allow for straightforward threaded installation into standard pipe assemblies. It is commonly installed by licensed plumbers and pipefitters in water distribution lines, gas supply piping, and mechanical equipment rooms where manual isolation is required.

Key Features

• Full port design minimizes pressure drop across the valve
• 2-piece brass body for corrosion resistance and durability
• PTFE ball seals provide reliable, long-term shutoff performance
• Steel lever handle for quick quarter-turn open and close operation
• FNPT x FNPT connections for standard threaded pipe assembly
• UL, CSA, FM, and NSF certified for use in potable water and gas service

Compatibility

Rated for use with potable water, grease, fuels, LP gas, and natural gas. Designed as a standard 2-inch full port threaded ball valve suitable for residential and commercial plumbing, hydronic, and fuel gas piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements where gas service is involved. Shut off supply pressure and depressurize the line before making or breaking any threaded connections. Apply appropriate thread sealant rated for the intended service medium. Verify valve orientation and handle clearance before final makeup to ensure full quarter-turn operation is unobstructed.
