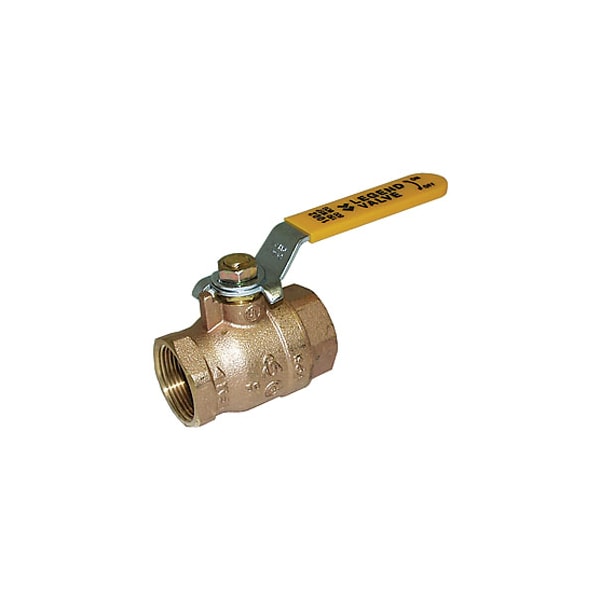

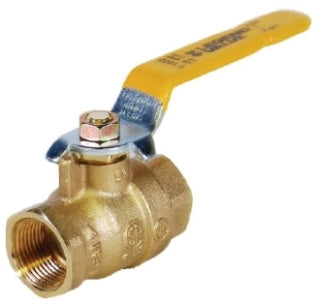

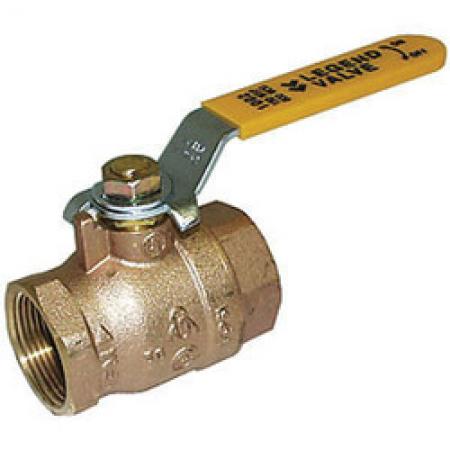

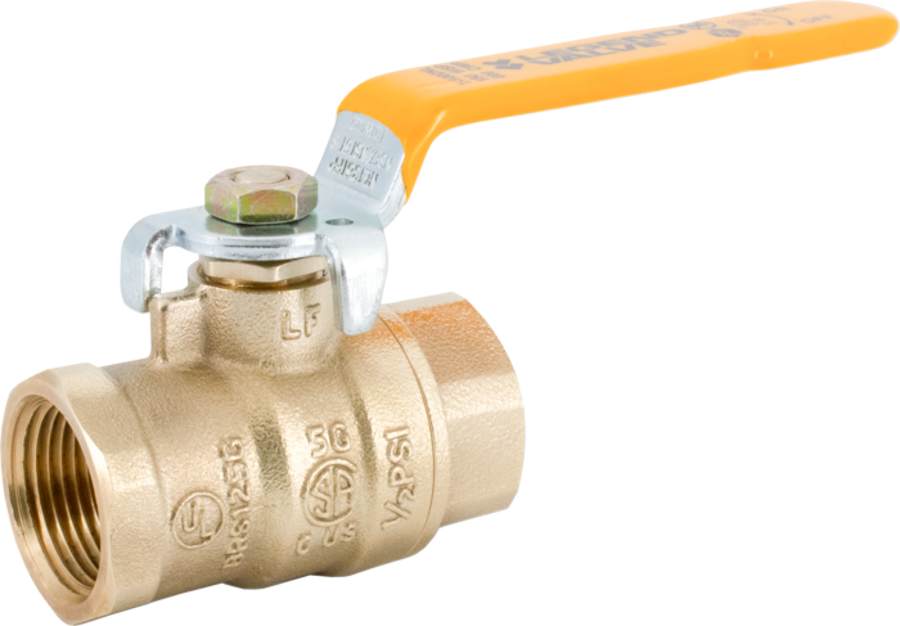

Legend Valve 101-063 Ball Valve 1/2 inches Full Port Thread Brass Gland Follower Design T-1002

Product Description

The LEGEND VALVE 101-063 is a ball valve with a 1/2" full port thread and brass gland follower design T-1002. It features a durable forged brass body and a bottom-loaded, PTFE isolated, blow-out proof stem. This valve is suitable for use with natural, manufactured, and mixed LP gas/air mixtures.

• Durable forged brass body
• Bottom loaded, PTFE isolated, blow-out proof stem
• Adjustable gland follower stem design

Product Highlights

This ball valve features a forged brass body, full port, and gland follower design.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-063
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Size: 1/2"
• Type: Ball Valve
• Ball Material: Polished Chrome Forged Brass
• Body Material: ASTM B124 UNS C37700 FORGED BRASS
• End Style: FNPT
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1/2 INCH X 1/2 INCH
• Port Type: Full
• Pressure Rating: 600 PSI (CWP)
• Series: T-1002
• Trim Material: Forged Brass Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards: 150 WSP, 600 CWP
• Connection Type: FNPT x FNPT
• Brand: Legend Valve
• Supplier Part Number: 101-063
• Brand Name: Legend Valve & Fitting, Inc.
• Mfg Part#: 101-063
• Applicable Standard: UL 2J73, WW-V-35C, MSS-SP-110, ISO 9002, FM, CSA (CANADA AND US), ANSI/NSF 61-8, ANSI/ASME B16.18, ANSI/ASME B16.33, ANSI Z21.15
• Application: LIQUID PETROLEUM GAS, AIR MIXTURE, HOUSE/GAS PIPING SYSTEM
• Inclusions/Features: GLAND FOLLOWER DESIGN, BOTTOM LOADED BLOWOUT PROOF STEM, STEEL HANDLE NUT, FORGED BRASS PACKING NUT/END ADAPTER
• End Connection: FEMALE THREADED X FEMALE THREADED
• Handle Material: ASTM A283 CLASS D STEEL
• Stem Packing Seal Material: DUPONT NON-STICK PTFE
• End to End Distance: 2.17 INCH
• Seat Material: DUPONT NON-STICK PTFE
• Stem Material: ASTM B16 UNS C36000 FORGED BRASS
• Flow Rating: 10 CV
• Model: T-1002
• Inlet to Outlet Length: 2.17 in
• Top to Inlet Center: 1.54 in
