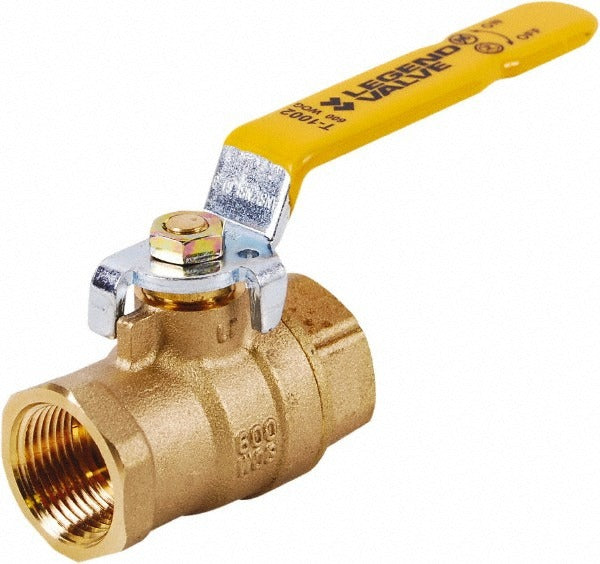

Legend Valve 101-061 Ball Valve 1/4 Inch Full Port Brass

Product Description

The LEGEND VALVE 101-061 is a 2-way, 2-piece manual ball valve designed for quarter-turn shutoff and flow control in plumbing, gas, and fluid-handling systems. The full-port design minimizes pressure drop by providing an unobstructed flow path equal to the pipe bore. The brass body resists corrosion in both wet and dry service conditions. PTFE seals ensure a reliable, low-friction seal across a broad range of media. A steel lever handle allows for fast, positive open and close operation without tools. At 0.25 pounds, this valve is compact and straightforward to install in tight spaces. Plumbers, pipefitters, and HVAC technicians install this valve as a service isolation or shutoff point in residential and light commercial piping systems.

This valve is rated for use with potable water, grease, fuels, and LP and natural gas, making it suitable across a wide range of trade applications. The 1/4-inch FNPT x FNPT end connections thread directly into standard female-threaded fittings and equipment ports. Typical installations include appliance shutoffs, branch line isolation, test port access, and fuel supply lines. The full-port flow path is especially useful in low-flow or metered systems where pressure drop must be kept to a minimum.

Key Features

• Full-port ball design provides unrestricted flow and minimal pressure drop
• 2-piece brass body construction for corrosion resistance in wet and gas service
• PTFE seat and seal material for chemical compatibility across listed media
• Steel lever handle allows quarter-turn operation without additional tools
• 1/4-inch FNPT x FNPT connections for direct thread-in installation
• Listed to UL, CSA, FM, and NSF standards for broad code compliance

Compatibility

Rated for use with potable water, grease, fuels, LP gas, and natural gas. Designed as an OEM-style or replacement shutoff valve for 1/4-inch female NPT threaded piping applications in residential and light commercial systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, IPC, and IFGC requirements for the intended service media. Shut off system pressure and depressurize the line completely before installing or removing any valve. Apply appropriate thread sealant or PTFE tape to male NPT threads before assembly. For gas service, leak-test all connections with an approved gas leak detection solution after installation.
