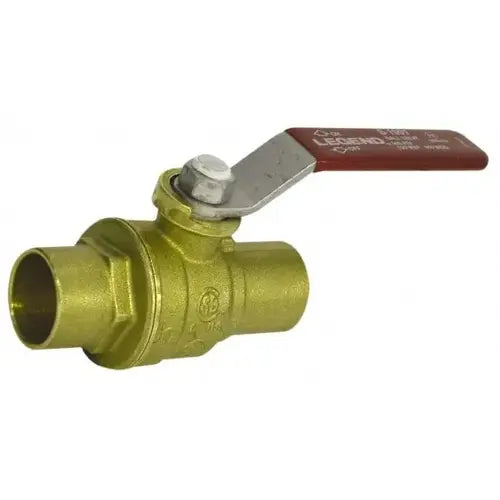

Legend Valve 101-046 S-1001 Ball Valve 1-1/4 inches

Product Description

The LEGEND VALVE 101-046 Ball Valve is a traditional S-1001 series valve designed for various applications. This 1-1/4 inch nominal, full port valve features a forged brass body and a polished chrome forged brass ball. It is rated for 600 psi CWP and has a 1.26 inch orifice. The valve includes a polished chrome forged brass stem and TFM PTFE seat trim, ensuring reliable operation.

• Durable forged brass body construction.
• Features a bottom-loaded, blow-out proof stem.
• Equipped with improved Dyneon TFM PTFE seats for enhanced sealing.

Product Highlights

CSA certified for gas and LP gas/air mixtures, and Factory Mutual approved for fire protection service.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-046
• Country of Origin: Import

Technical Specifications

• Type: Traditional
• Series: S-1001
• End Style: C
• Port Type: Full
• Manufacturer: LEGEND VALVE
• Nominal Size: 1-1/4 in
• Orifice Size: 1.26 in
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
• Domestic/Import: Import
• Pressure Rating: 600 psi CWP
• Top to Inlet Center: 2.24 in
• Inlet to Outlet Length: 4.31 in
• Steam Pressure Rating: 150 psi WSP
• End Connection: Sweat x Sweat
• Country of Origin: Italy
• Handle Type: Lever
