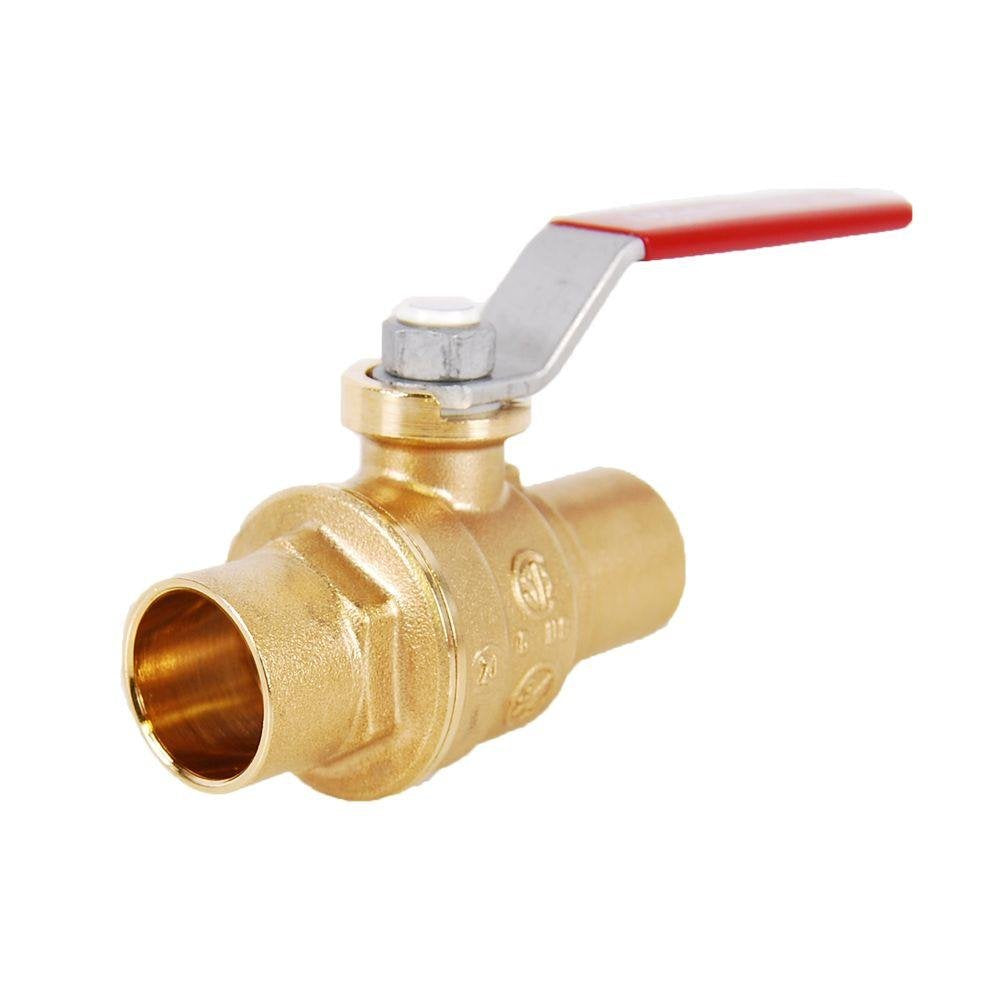

Legend Valve 101-044NL S-1001 Copper x Copper Full-Port Ball Valve 3/4

Product Description

The Legend Valve 101-044NL S-1001 Copper x Copper Full-Port Ball Valve, 3/4 inch, is designed for residential and commercial applications. It is made of forged brass and has a full-port design to allow maximum flow with minimal pressure drop.

• CSA certified for gas use
• 600 WOG non-shock pressure rating
• Model S-1001 is NSF approved

Product Highlights

This ball valve features a heavy-duty blowout-proof stem with Teflon anti-friction washers and Viton O-rings. It is ideal for use on steam, water, oil, or gas.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model: S-1001NL

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Nominal Size: 3/4 inch
• Orifice Size: 0.79 inch
• Pressure Rating: 600 psi CWP
• Top to Inlet Center: 1.89 inches
• Inlet to Outlet Length: 3.15 inches
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
