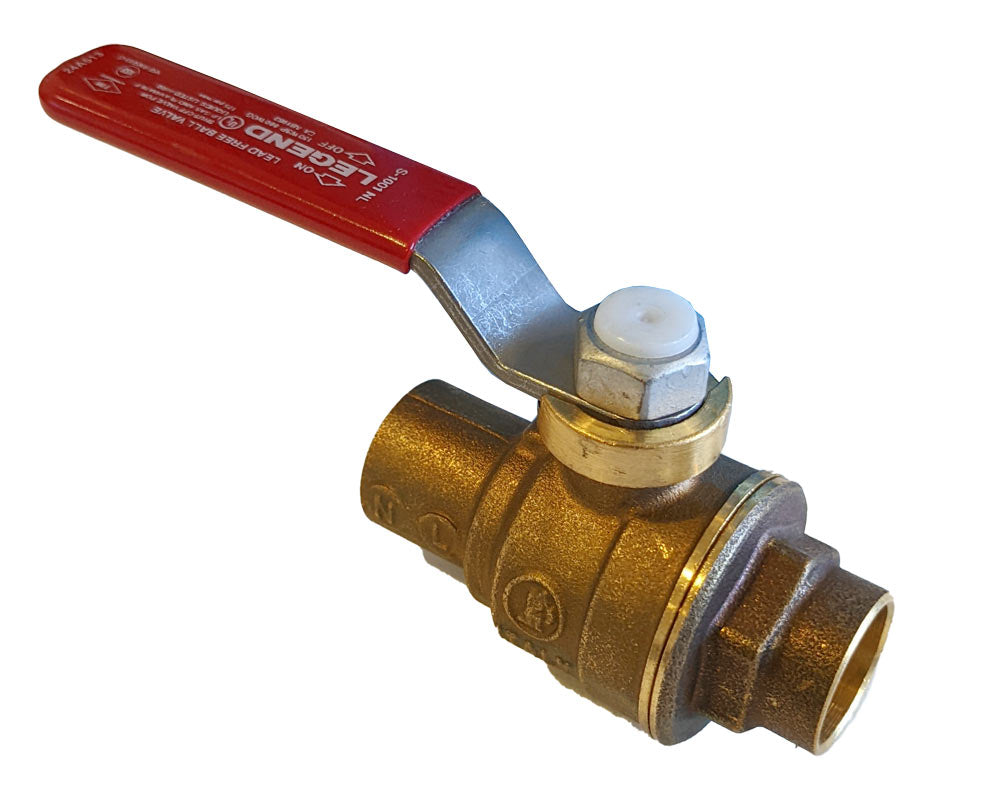

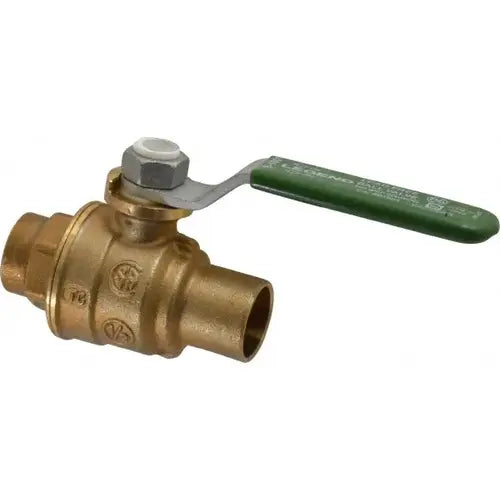

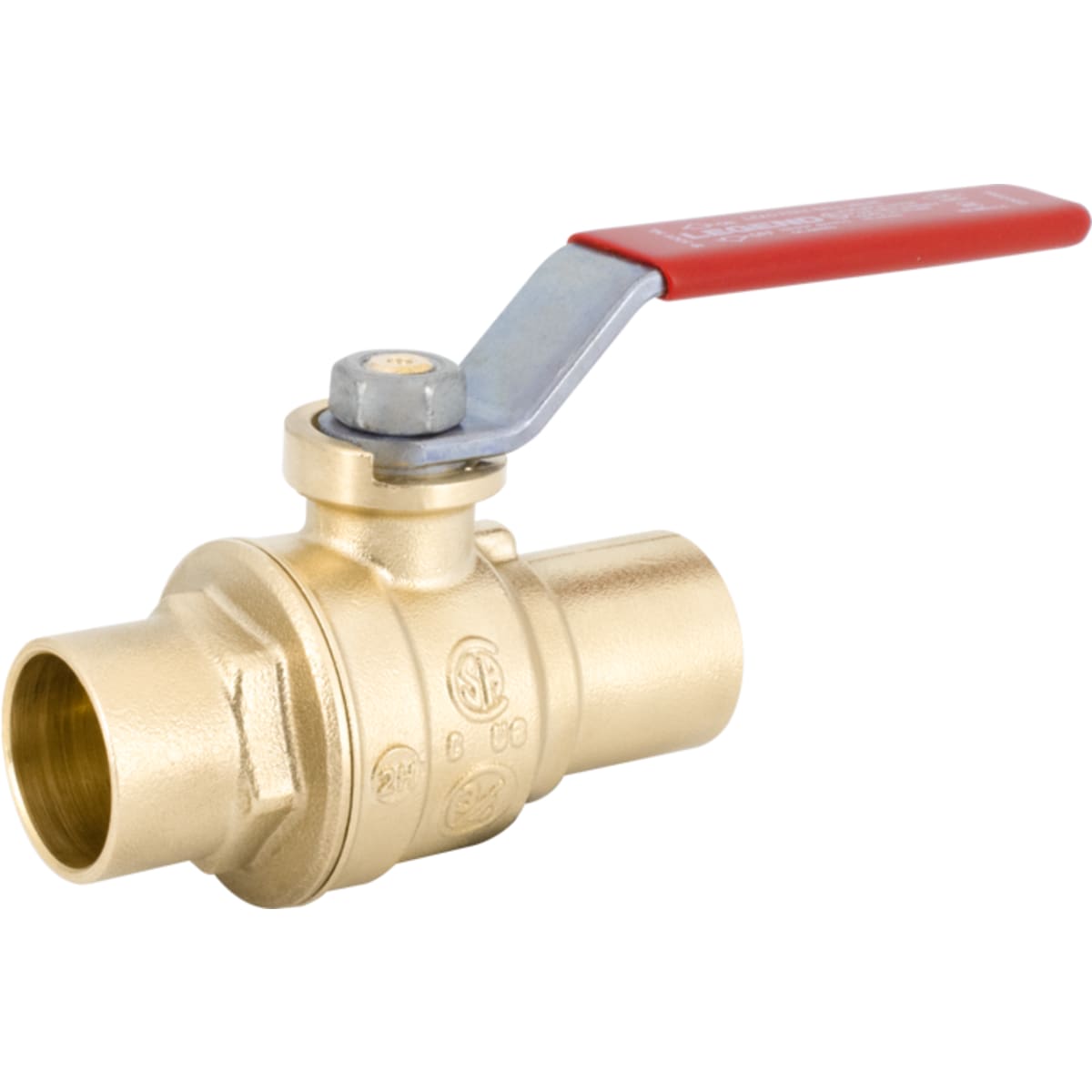

Legend Valve 101-043NL S-1001 No Lead Copper x Copper Full-Port Ball Valve, 1/2 inches

Product Description

The Legend Valve 101-043NL is a heavy-duty forged brass ball valve designed for residential and commercial use on steam, water, oil, or gas. Its full port allows for maximum flow and minimum pressure drop. The heavy-duty blowout-proof stem utilizes Teflon anti-friction washers and Viton O-rings.

• CSA certified for use with natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures
• Pressure Rating: 600 WOG NON-SHOCK
• Working Steam Pressure: 150 WSP

Product Highlights

This full-port ball valve is suitable for potable water installations and complies with lead-free plumbing laws. It features a blowout-proof stem and maintenance-free dual O-Ring stem seal.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 101-043NL
• Country of Origin: Italy

Technical Specifications

• Pressure Rating: 600 WOG NON-SHOCK
• Working Steam Pressure: 150 WSP
• Material: Forged Brass
• Port Type: Full-Port
• Connection Type: Copper x Copper
• Size: 1/2"
• Application: Residential and commercial use on steam, water, oil or gas
• Certification: CSA certified for use with natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures; NSF approved for use on potable water
• Standard: Conforms to Federal Specification WW-V-35C
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 2.32 in
• Nominal Size: 1/2 in
• Orifice Size: 0.59 in
• Series: S-1001NL
• Top to Inlet Center: 1.46 in
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
• Brand: LEGEND VALVE
• MPN: 101-043NL
• ItemPackageQuantity: 1
• Features: 1/2" S-1001 No Lead Forged Brass Full Port Ball Valve
• For Use With: Potable Water Applications
• Handle Type: Quarter Turn
• Lead Free: Yes
• Pipe Size: 1/2
• Valve Type: Full Port Bi-Directional Ball Valve
• End Connection: Sweat
• Manufacturer: Legend
• Product Type: Ball Valve
• Ratings: 150 WSP
