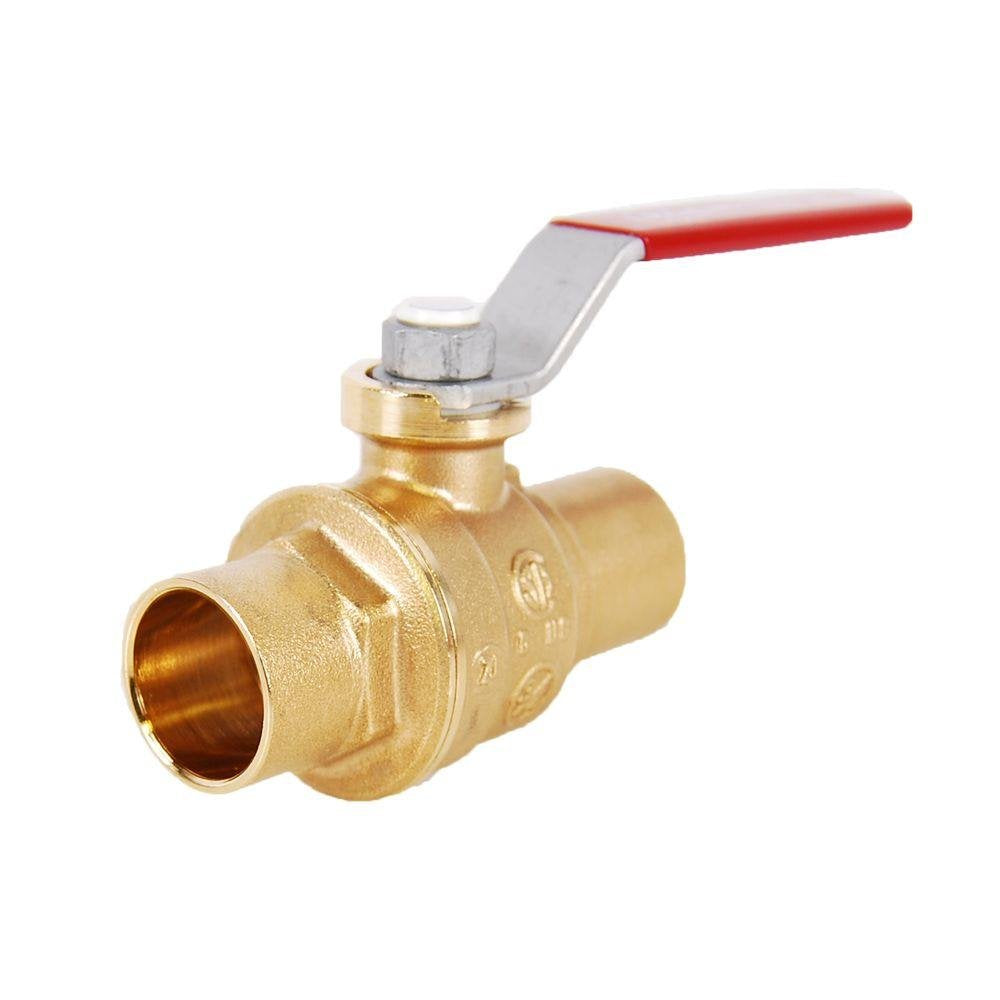

Legend Valve 101-043NL S-1001 No Lead Copper x Copper Full-Port Ball Valve, 1/2

Product Description

The Legend Valve 101-043NL S-1001 No Lead Copper x Copper Full-Port Ball Valve, 1/2 inch, is a versatile valve suitable for residential and commercial use.

• CSA certified for natural, manufactured, mixed, liquefied petroleum, and LP gas/air mixtures
• Pressure Rating: 600 WOG NON-SHOCK
• Working Steam Pressure: 150 WSP

Product Highlights

Constructed of heavy-duty forged brass, this valve features a full port for maximum flow with minimal pressure drop or turbulence. The blowout-proof stem includes two Teflon anti-friction washers and two Viton O-rings. Suitable for steam, water, oil, or gas.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-043NL

Technical Specifications

• Nominal Size: 1/2 inch
• Connection Type: Copper x Copper
• Pressure Rating: 600 psi CWP
• Working Steam Pressure: 150 psi WSP
• Material: Forged Brass
• Certification: CSA certified
• Orifice Size: 0.59 inch
• Inlet to Outlet Length: 2.32 inches
• Top to Inlet Center: 1.46 inches
• Series: S-1001NL
• Country of Origin: Italy
