Product Description

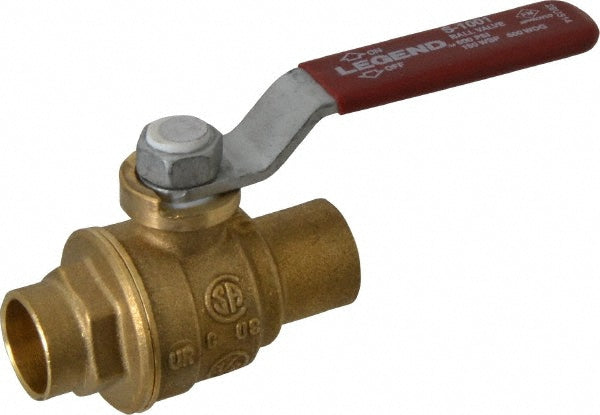

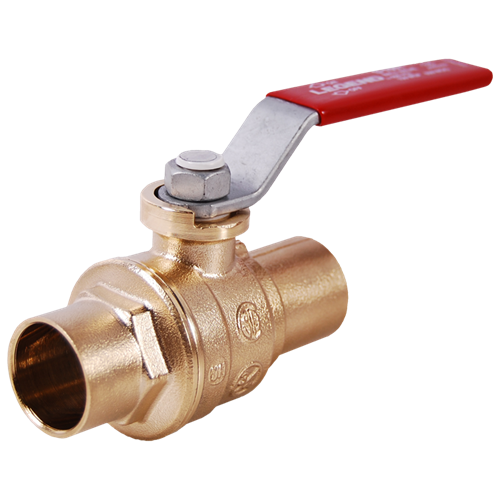

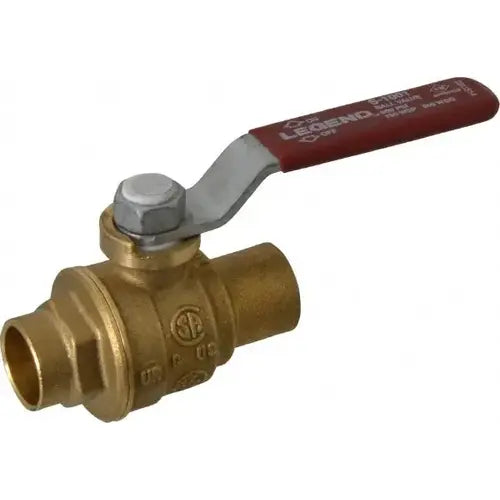

The LEGEND VALVE 101-043 is a traditional S-1001 series ball valve, featuring a 1/2 inch nominal size and full port design for optimal flow. Constructed with a durable forged brass body and a polished chrome forged brass ball, it is rated for 600 psi CWP. This import valve is suitable for various plumbing and industrial applications, ensuring reliable fluid control with a sweat x sweat connection type.
- Durable forged brass body ensures longevity.
- Bottom loaded, blow-out proof stem enhances safety.
- Maintenance-free dual O-Ring stem seal prevents leaks.
Product Highlights
Robust forged brass full port ball valve with a 600 psi CWP rating, ideal for efficient fluid control.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 101-043
-
Country of Origin: Italy
Technical Specifications
-
Type: Traditional
-
Series: S-1001
-
End Style: C
-
Port Type: Full
-
Manufacturer: LEGEND VALVE
-
Nominal Size: 1/2 in
-
Orifice Size: 0.59 in
-
Ball Material: Polished Chrome Forged Brass
-
Body Material: Forged Brass
-
Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
-
Domestic/Import: Import
-
Pressure Rating: 600 psi CWP
-
Top to Inlet Center: 1.46 in
-
Inlet to Outlet Length: 2.32 in
-
Standards: 150 WSP, 400 CWP (2-1/2– - 4–), 600 CWP
-
Connection Type: Sweat x Sweat
-
Country of Origin: Italy
-
UPC: 662545000138
-
Handle Type: Lever
-
Steam Pressure Rating: 150 psi
-
UNSPSC Code: 40141607
