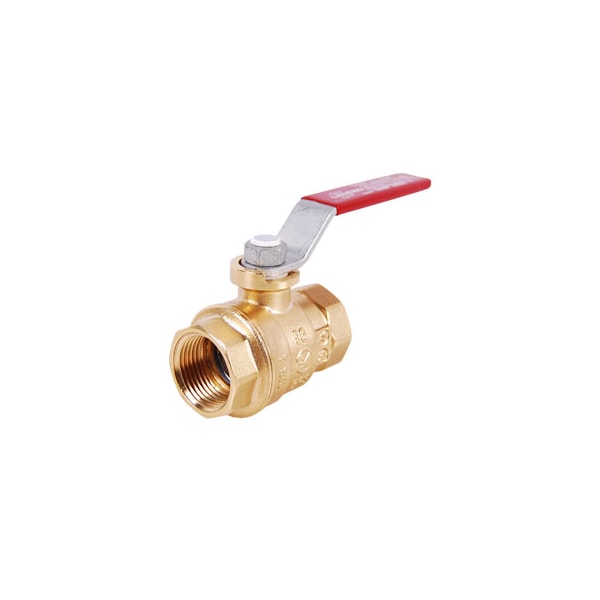

LEGEND VALVE 101-026NL 1-1/4 T-1001 NO LEAD IPS FP BV

Product Description

The LEGEND VALVE 101-026NL is a ball valve designed for applications requiring reliable flow control. This valve features a nominal size of one and one-quarter inches and is suitable for installations with natural, manufactured, or mixed LP gas and air mixtures. It has a full port design and a pressure rating of six hundred psi CWP.

• Lead-free design compliant with plumbing laws
• Bottom-loaded blow-out proof stem
• Maintenance-free dual O-ring stem seal

Product Highlights

This valve is ideal for plumbing installations where lead-free components are necessary. It is built to last with forged brass materials and ensures high performance thanks to its advanced design.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Product SKU: LEG 101-026NL

Technical Specifications

• Ball Material: Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3.3 inches
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1001NL
• Top to Inlet Center: 2.24 inches
• Trim Material: Forged Brass Stem and TFM PTFE Seat
