Legend Valve 101-026 T-1001 Ball Valve 1-1/4 in

Product Description

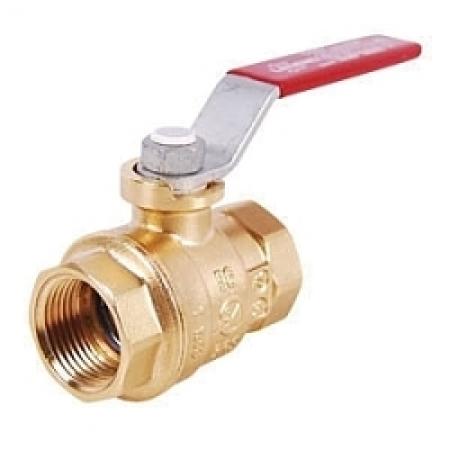

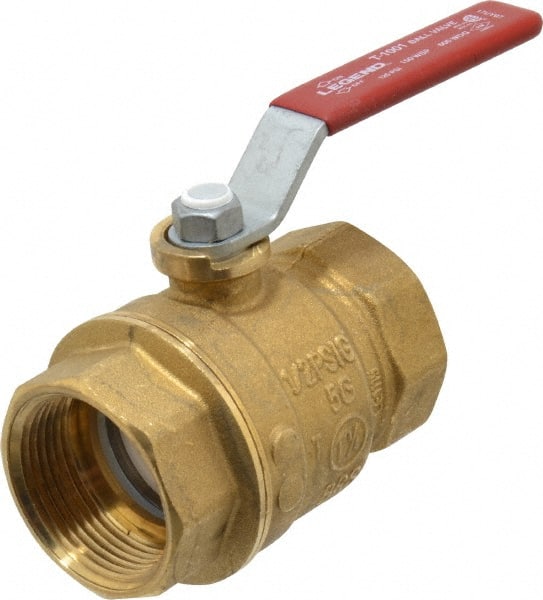

The LEGEND VALVE 101-026 is a T-1001 Series 1-Piece Ball Valve with a 1-1/4 in nominal size. This full port valve is suitable for oil, steam, and water media, with a pressure rating of 600 psi and a temperature rating of 250 deg F. It features a lever-operated actuator and a polished chrome finish.

• Features anti-corrosive Dacromet coated handle and tamper-evident Dacromet coated nut.
• Forged brass body, end adapter, and cavity ball for lighter weight and greater durability.
• Bottom loaded stem is Blow-out proof and includes a PTFE thrust washer.

Product Highlights

This LEGEND VALVE ball valve is maintenance-free and CSA certified for various gas mixtures, making it suitable for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-026
• Country of Origin: Italy

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT x IPS
• Finish: Polished Chrome
• Media: Oil/Steam/Water
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-1001
• Softgoods Material: TFM/PTFE
• Temperature Rating: 250 deg F
• Trim Material: Brass Stem and PTFE Seat
• Type: 1-Piece
• Standards: 150 WSP, 400 CWP (2-1/2” - 4”), 600 CWP
• End Connection: FNPT x FNPT
• Wsp Rating: 150psi
• Seat Material: Polytetrafluroethylene
• Model: 101-026
