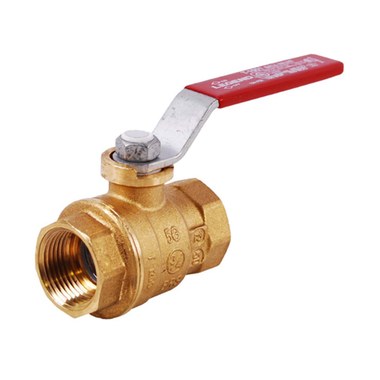

Legend Valve 101-025NL Iron Pipe Straight Thread Full-Port Ball Valve 1

Product Description

The Legend Valve 101-025NL Iron Pipe Straight Thread Full-Port Ball Valve 1 inch is built for durability and reliable performance in multiple applications. This valve features a lead-free forged brass construction, making it suitable for both residential and commercial settings. Its full-port design ensures maximum flow with minimal pressure drop.

• Constructed from heavy-duty forged brass
• Handles steam, water, oil, or gas
• Full port for maximum flow and minimum turbulence

Product Highlights

The Legend Valve 101-025NL is designed for applications involving steam, water, oil, or gas. Its body, stem, and ball are made of lead-free forged brass, ensuring longevity and reliability. The valve includes a blowout-proof stem for safety and durability.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-025NL
• Category: Ball Valves
• Use Case: Residential, Commercial

Technical Specifications

• Pressure Rating: 600 psi
• Temperature Rating: 250 degrees Fahrenheit
• Port Type: Full
• End Style: FNPT
• Media: Air, Gas, Oil, Water
• Inlet to Outlet Length: 2.91 inches
• Top to Inlet Center: 2.05 inches
• Ball Material: Brass
• Body Material: Brass
• Trim Material: Brass Stem and PTFE Seat
• Actuator Type: Quarter Turn Handle
