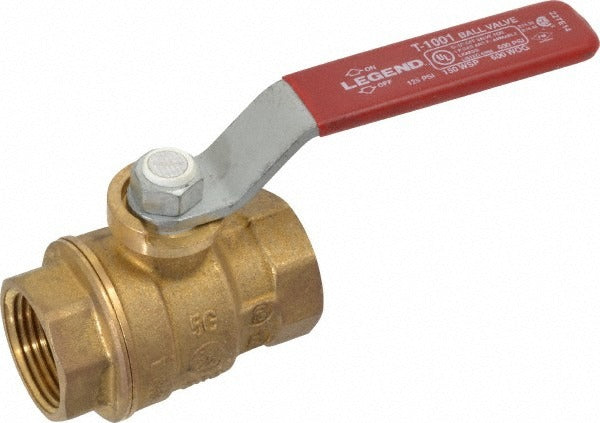

Legend Valve 101-024 Ball Valve 3/4 Inch Fnpt Brass

Product Description

The LEGEND VALVE 101-024 is a standard manual ball valve designed for 3/4-inch pipe installations requiring reliable, full-port flow control. Built with a brass body and brass trim, this valve delivers low pressure drop across the seat and smooth quarter-turn operation via a lever handle. The PTFE seat material provides chemical resistance and long-term sealing performance under typical service conditions. It is suited for licensed plumbers and pipefitters working on residential and light commercial water, hydronic, and general fluid distribution systems where a dependable shutoff is required.

This valve is configured with female NPT connections on both ends, making it a straightforward threaded installation into existing pipe runs. Full-port design ensures the internal bore matches the pipe diameter, minimizing flow restriction. It is commonly installed on supply lines, isolation points, and branch takeoffs in plumbing and hydronic heating systems. The lever handle allows for quick visual confirmation of valve position, open or closed, which is particularly useful in mechanical rooms and tight utility spaces.

Key Features

• Full-port bore maintains pipe diameter flow path with minimal pressure drop
• Brass body and brass trim for corrosion resistance in water and hydronic applications
• PTFE seat provides chemical resistance and reliable long-term sealing
• FNPT x FNPT end connections for standard threaded pipe installation
• Quarter-turn lever handle with clear open and closed position indication

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 3/4-inch NPT-threaded pipe systems in residential and light commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before threading the valve into place. Apply thread sealant tape or compound to male pipe threads before engagement. Do not overtighten threaded connections, as brass fittings can crack under excessive torque.
