Legend Valve 101-023NL T-1001 No Lead Iron Pipe Straight Thread Full-Port Ball Valve 1/2

Product Description

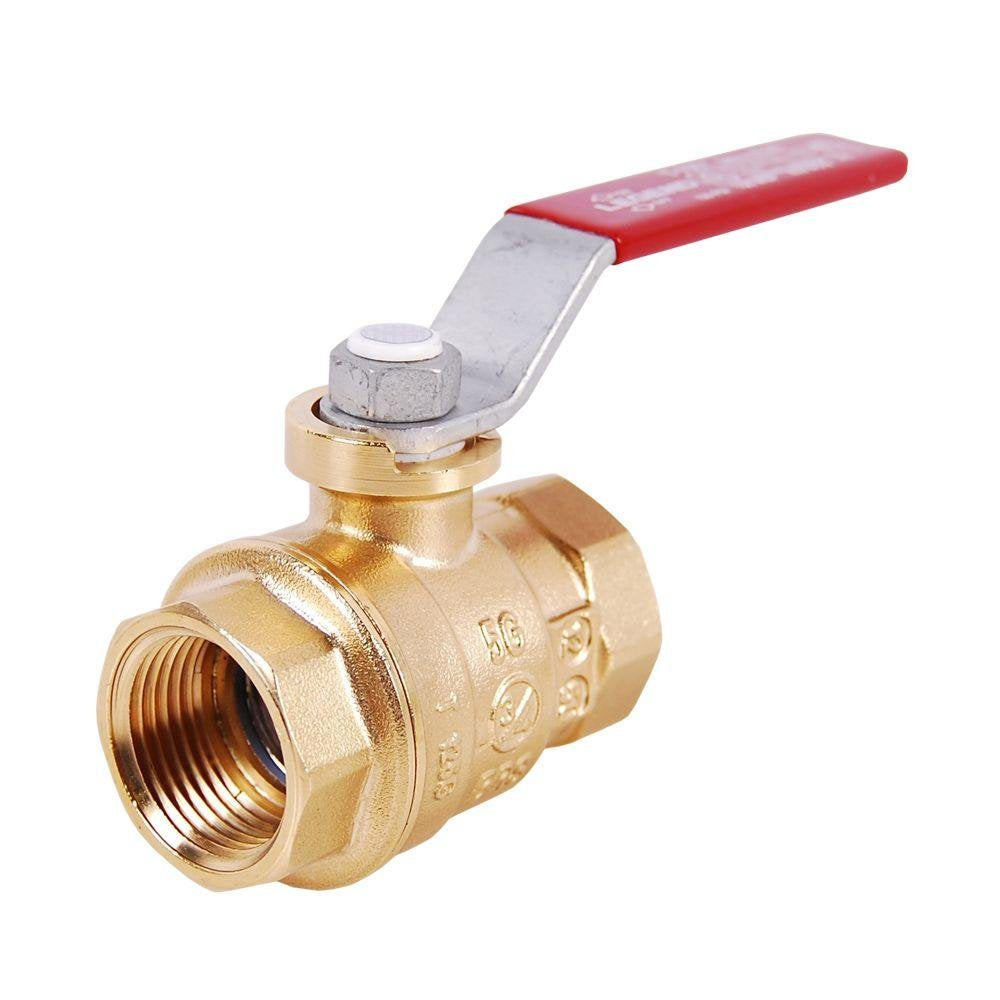

The Legend Valve 101-023NL Ball Valve is built for residential and commercial use. Constructed of heavy-duty forged brass, it is designed for use on steam, water, oil, or gas. The full port design ensures maximum flow with minimal pressure drop and turbulence. It features a blowout-proof stem with two Teflon anti-friction washers and two Viton O-rings.

• CSA certified for various gas mixtures
• Pressure rating: 600 WOG non-shock
• Works for steam pressures up to 150 WSP

Product Highlights

This 1/2 inch ball valve features iron pipe straight threads and complies with Federal Specification WW-V-35C. It provides reliable performance with its durable design and ease of use.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 101-023NL
• UPC: 662545081700

Technical Specifications

• Actuator Type: Quarter Turn Handle
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT
• Flow Rate: 14.68 gpm
• Inlet to Outlet Length: 2.08 inches
• Media: Air/Gas/Oil/Water
• Nominal Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-1001NL
• Softgoods Material: TFM/PTFE
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 1.46 inches
• Trim Material: Brass Stem and PTFE Seat
