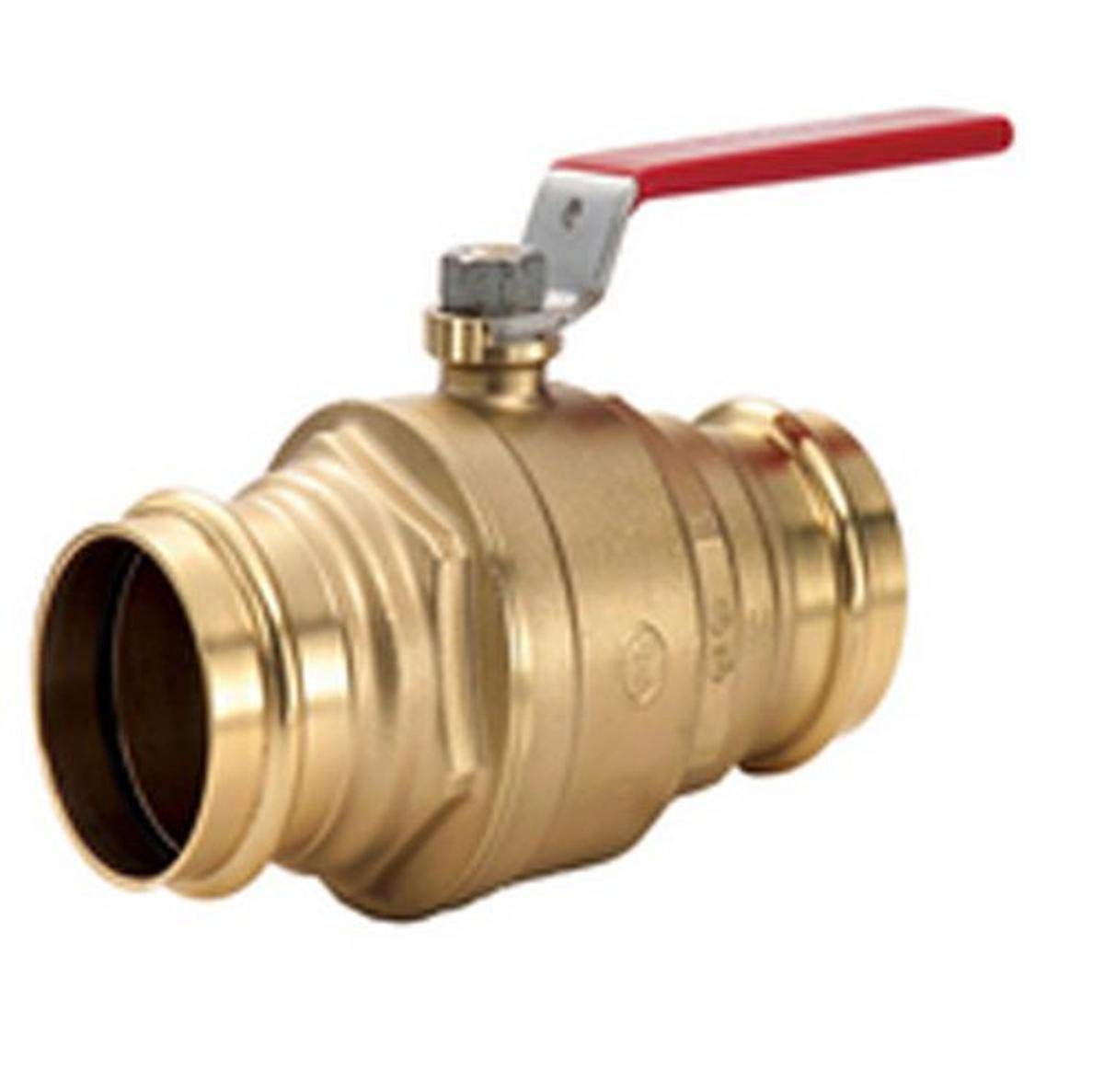

Legend Valve 101-008NL P-200 No Lead Legend-Press Ball Valve 2

Product Description

The Legend Valve 101-008NL P-200 No Lead Legend-Press Ball Valve is a reliable choice for your plumbing needs. This valve is designed with a 2-inch nominal size and features a full port design, making it suitable for a variety of applications.

• Lead-free brass construction
• 2 inches nominal size
• Press-type end connections

Product Highlights

This ball valve features a lead-free, forged brass ball and a polished chrome finish. It is ideal for potable water installations, meeting all lead-free plumbing laws. With its lever-operated actuator and full port design, the valve ensures optimal flow and minimal pressure drop.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-008NL
• Model: P-200NL

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 400 psi
• Temperature Rating: 230 deg F
• Port Type: Full
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Finish: Polished Chrome
• Inlet to Outlet Length: 7.33 in
• Top to Inlet Center: 3.08 in
• Dimensions: 9.15 in W x 4.76 in H
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: TFM/PTFE/FKM Fluoroelastomer
• Media: Water
• Series: P-200NL
• Domestic/Import: Import
