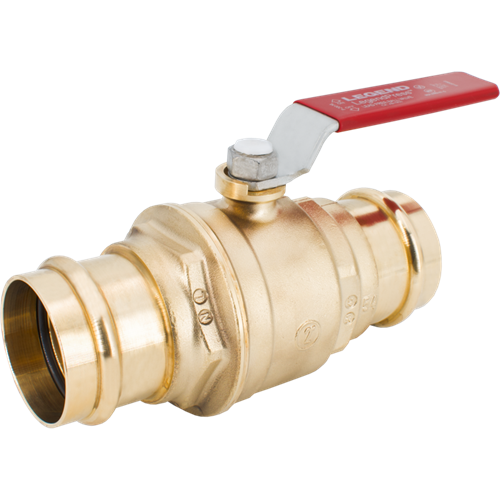

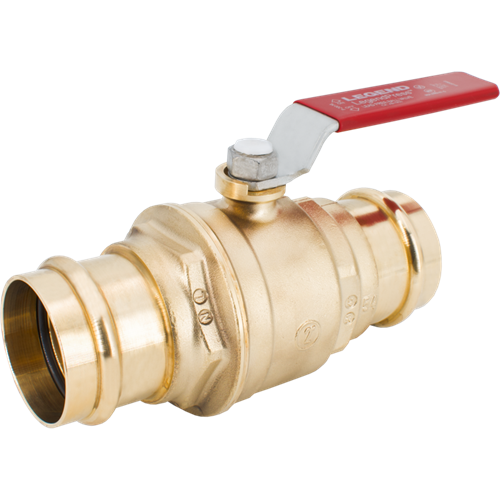

Legend Valve 101-006 P-200 LegendPress Ball Valve 1-1/4 inches

Product Description

The LEGEND VALVE 101-006 P-200 LegendPress Cold Expansion Ball Valve is a large diameter, 1-1/4 inch nominal press valve designed for robust performance. It features a forged brass body, a chrome plated forged brass ball, and TFM PTFE seat trim, ensuring durability. This full port valve operates with a lever actuator, handling up to 500 psi CWP and temperatures up to 250 deg F. Its press connections are suitable for ASTM B88 copper tubing.

• Press-to-connect end connections for ASTM B88 types K, L, and M hard-drawn copper tubing.
• Deeper tubing sockets and dual O-Rings at each press connection for enhanced stability and sealing.
• Oversized lever handle with a pre-drilled tag hole, suitable for commercial applications.

Product Highlights

Durable forged brass ball valve with press connections for cold expansion applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-006

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• End Style: Press
• Inlet to Outlet Length: 5.08 in
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 500 psi CWP
• Series: P-200
• Temperature Rating: 250 deg F
• Top to Inlet Center: 2.24 in
• Trim Material: Chrome Plated Forged Brass Stem and TFM PTFE Seat
• Valve Type: Large Diameter
• Manufacturer: LEGEND VALVE
• UPC: 662545000046
• End Connection Configuration: Press x Press
