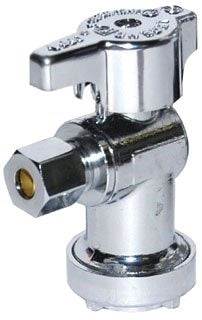

Legend Valve 04358 Angle Stop Valve 5/8 X 1/4 Inch Od

Product Description

The LEGEND VALVE 04358 is an angle stop valve with a 5/8 inch OD inlet and a 1/4 inch OD outlet. Angle stops are quarter-turn or multi-turn shutoff valves installed at the wall or floor supply stub-out to isolate individual fixtures from the water supply. This valve serves as the final service shutoff between the supply line and the connected fixture or appliance. Licensed plumbers and pipefitters install these valves during new construction, remodel work, and fixture replacement. The compact angle configuration allows for clean routing from a wall-supply stub-out to the fixture supply line.

The 04358 is suited for residential and light commercial plumbing applications. Typical install locations include under sinks, at toilets, and at appliance connections where a 5/8 inch OD compression or slip-fit supply line meets a 1/4 inch OD outlet line. This sizing is commonly used to serve ice makers, filtration systems, or other small-bore supply connections where flow restriction to a reduced outlet is required.

Key Features

• Angle body configuration for wall-supply stub-out installations
• 5/8 inch OD inlet for standard residential supply line connection
• 1/4 inch OD outlet sized for ice makers, filtration, and small-bore fixtures
• Compact form factor fits in tight under-sink and in-wall cabinet spaces
• Lightweight at 0.28 pounds for easy single-hand positioning during install

Compatibility

Designed as an OEM-style replacement angle stop valve for residential and light commercial plumbing systems requiring a 5/8 inch OD inlet and 1/4 inch OD outlet connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the main water supply and relieve line pressure before removing any existing stop valve. Inspect the supply stub-out threads or compression seat for damage before fitting the new valve. Do not overtighten compression fittings — use manufacturer-recommended hand-plus-wrench turns only, and verify for leaks at full system pressure before closing up the work area.

Technical Specifications

• Inlet Size: 5/8 inches OD
• Outlet Size: 1/4 inches OD
• Valve Body Orientation: Angle
• Weight: 0.28 pounds
• UPC Code: 662545084862

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 04358
