Product Description

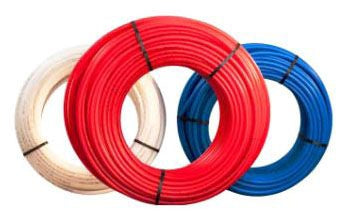

The Legend Valve 500-34-300B is a three-quarter inch PEX tubing with an outside diameter of 0.875 inches and a length of three hundred feet. This tubing is suitable for various plumbing applications, especially hot and cold potable water systems. The material used is HyperTherm bimodal polyethylene, which is lead-free and meets ASTM standards.
- Pressure-rated for 200 PSI at seventy-three degrees Fahrenheit.
- Complies with ANSI/NSF standards for safe drinking water.
- Flexible and easy to install, making it ideal for tight spaces.
Product Highlights
This PEX tubing can be used in a range of applications, including residential and commercial plumbing systems, and is packaged to protect it from UV damage.
Product Information
Standard Information
-
Brand: Legend Valve
-
Model Number: 500-34-300B
Technical Specifications
-
Inside Diameter: 0.75 inches
-
Outside Diameter: 0.875 inches
-
Length: 300 feet coil
-
Material: HyperTherm bimodal polyethylene
-
Wall Thickness: 0.097 inches
-
Schedule: SDR-9
-
Pressure Rating: 100 PSI at 180 degrees Fahrenheit, 200 PSI at 73 degrees Fahrenheit
-
Color: Blue
-
Weight: 10.5 pounds per 100 feet
-
Applicable Standards: ANSI/NSF 14/16, ASSE 1061, AWWA C901, CSA B137.18, CAN/ULC S102.2
-
Lead-Free: Yes
