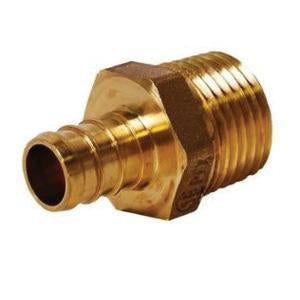

Legend 460-769NL Valve 1-1/2 PEX x 1-1/2 MNPT Adapter

Product Description

The Legend Valve 460-769NL is a 1-1/2" x 1-1/2" PEX x MNPT adapter, constructed from no-lead/DZR forged brass. This fitting is designed for use in cold and hot potable water distribution systems. It features barbed end connections for insertion into PEX tubing conforming to ASTM F876 and F877 and is suitable for lead-free potable water installations.

• Standards ASTM F 1807
• Connection Type PEX x MNPT
• Size 1-1/2" X 1-1/2"
• Lead-free design

Product Highlights

DZR forged brass adapter for PEX to MNPT connections in potable water systems.

Product Information

Standard Information

• Brand: LEGEND
• Manufacturer Part Number: 460-769NL
• Country of Origin: China

Technical Specifications

• Standards: ASTM F 1807
• Connection Type: PEX x MNPT
• Size: 1-1/2" X 1-1/2"
• MFR #: 460-769NL
• Material: Brass
• Sub Type: PEX Crimp Fittings
• Type: PEX Fittings
• MPN: 460-769NL
• MALE TYPE: UNS C46500 DZR BRASS MATERIAL
• APPLICABLE STANDARD: NSF/ANSI 14/61G, ANSI/ASME B1.20.1, CSA B137.5, CUPC, IAPMO APPLICABLE STANDARD
• POTABLE WATER APPLICATION: FORGED PROCESS
• MATERIAL SPECIFICATION: ASTM F1807 MATERIAL SPECIFICATION
• PRESSURE RATING: 100 PSI AT 180 DEG F PRESSURE RATING
• END CONNECTION: PEX X MALE THREADED END CONNECTION
• LEAD-FREE: Material Brass
