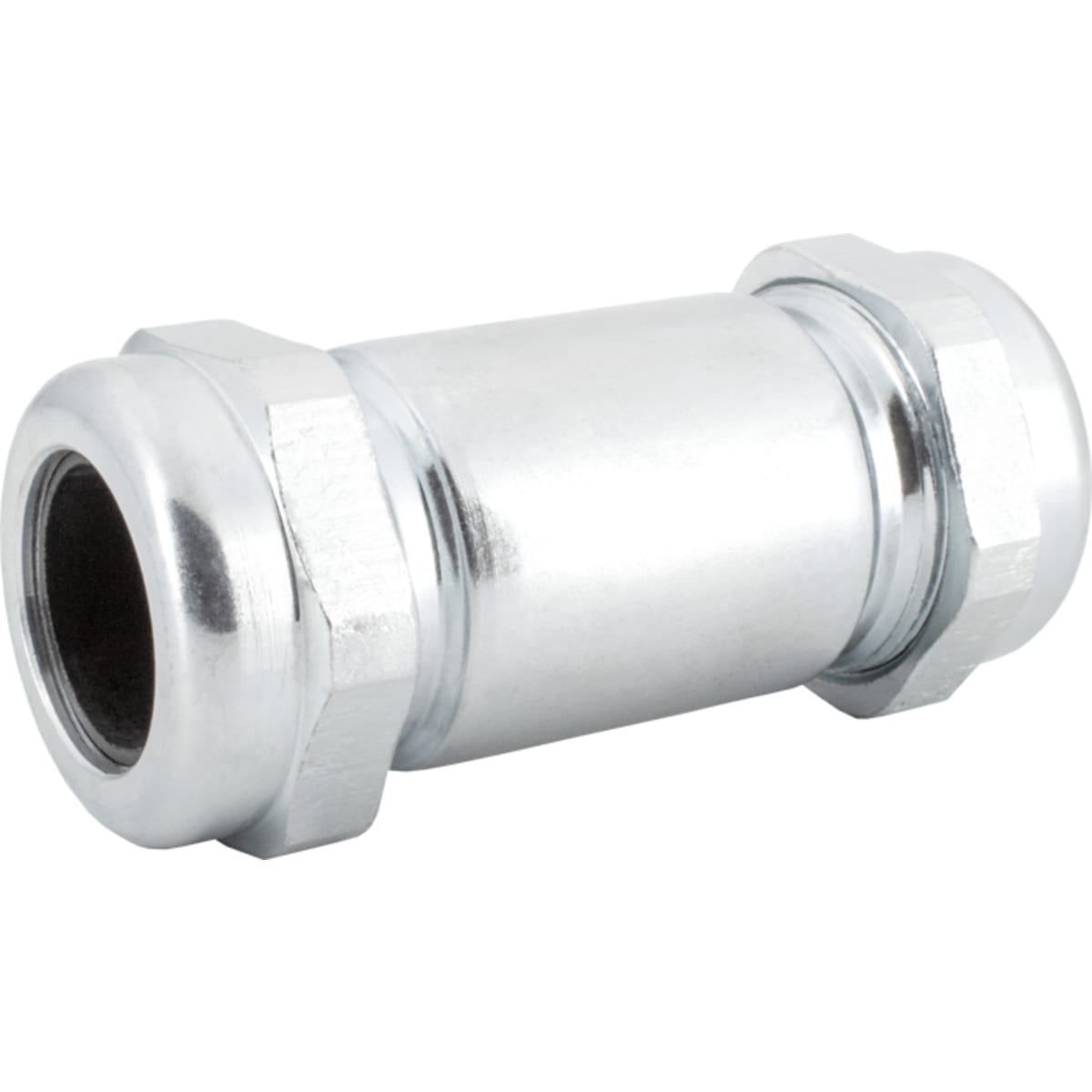

Legend 303-106 Long Pattern Coupling, Steel, 1-1/4 in Nominal, IPS Compression End Style

Product Description

The Legend 303-106 Long Pattern Coupling is a steel fitting designed for connecting pipes with a nominal size of one and a quarter inches. This coupling features an IPS compression end style and measures four point eight inches in length. It is suitable for a pressure rating of one hundred twenty-five psi at cold working pressure and can handle temperatures up to two hundred ten degrees Fahrenheit.

• Fitting type: Coupling
• Import quality with galvanized finish
• Not suitable for steam service

Product Highlights

The Legend 303-106 Long Pattern Coupling is ideal for plumbing applications requiring durable connections and resistance to corrosion.

Product Information

Standard Information

• Brand: Legend
• Part Number: 303-106

Technical Specifications

• Domestic/Import: Import
• End Style: IPS Compression
• Finish: Galvanized
• Fitting Type: Coupling
• Length: 4.8 in
• Material: Steel
• Nominal Size: 1-1/4 in
• Pressure Rating: 125 psi CWP
• Standards/Approvals: ASTM A123/A123M-02
• Temperature Rating: 210 deg F
• Type: Long Pattern
