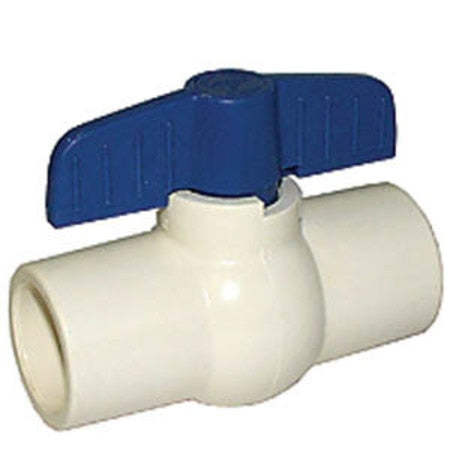

Legend 202-408 2 S-605 CPVC Ball Valve 150 psi Full Port

Product Description

The LEGEND Valve model 202-408 is a compact 2 inch S-605 CPVC ball valve designed for plumbing applications. This valve features a solvent end style and is rated for a pressure of 150 psi. It is suitable for use with oil and water media. The ball valve includes a T-Handle actuator for easy manual operation.

• Compact design for space-saving plumbing installations
• Constructed from ASTM D1784 virgin CPVC for durability
• Compatible with CTS CPVC tubing for solvent weld installations

Product Highlights

This miniature ball valve is engineered for maximum flow efficiency and minimal pressure drop in your plumbing system. It's an ideal choice for various residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• MPN: 202-408

Technical Specifications

• Inlet to Outlet Length: 5.69 inches
• Height: 4.63 inches
• Ball Material: CPVC
• Body Material: CPVC
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees Fahrenheit
• Pressure Rating: 150 psi
• Nominal Size: 2 inches
• Port Type: Full
• Actuator Type: T-Handle
• End Style: Solvent
• Series: S-605
• Domestic/Import: Import
