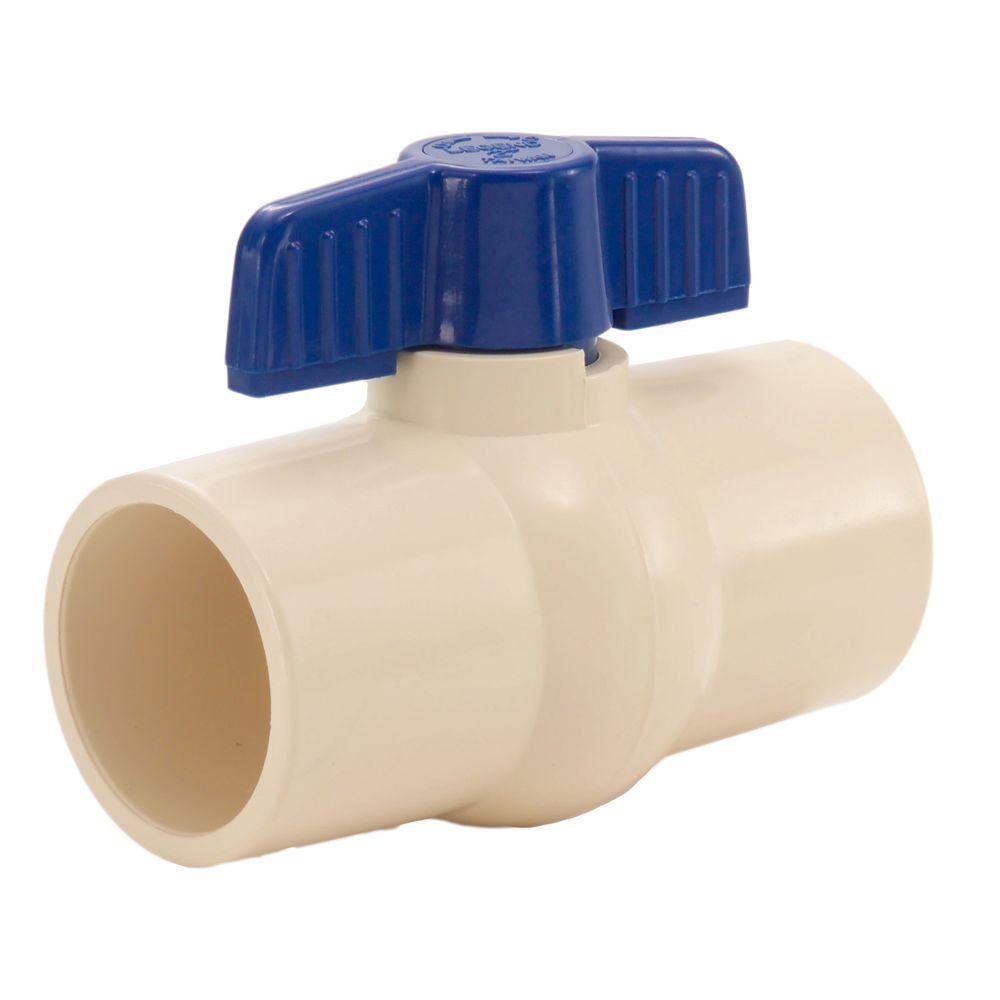

Legend 202-404 3/4 CPVC Ball Valve Solvent x Solvent

Product Description

The Legend Valve 202-404 is a 3/4 inch CPVC ball valve designed for solvent weld applications. It operates efficiently under pressure ratings up to 150 psi and can withstand temperatures of up to 180 degrees Fahrenheit. The valve features a T-handle actuator, ensuring ease of use, and is suitable for oil and water media. The compact design allows for installation in tight spaces, enhancing versatility for plumbing tasks.

• Constructed from ASTM D1784 virgin CPVC resin
• Severe shock loads are absorbed by the valve body
• Compact body design with low torque, durable PTFE seats

Product Highlights

This product is ideal for solvent weld installations on CTS CPVC tubing. It is designed to offer maximum flow while minimizing pressure drop, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 202-404

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Bone
• Dimensions: 2-1/2 inches H
• Domestic/Import: Import
• End Style: Solvent
• Inlet to Outlet Length: 3-1/4 inches
• Media: Oil/Water
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: S-605
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees F
• Trim Material: CPVC Stem and Dupont PTFE Seat
• Type: Compact
