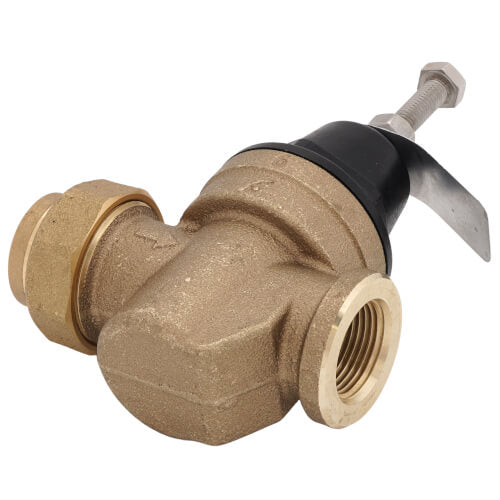

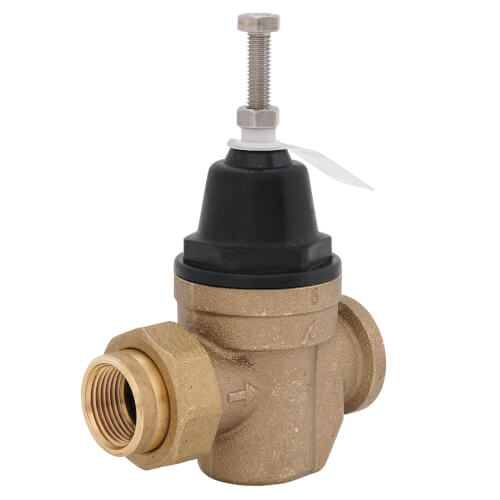

Legend 111-334NL 3/4 Brass Compact Water Pressure Reducing Valve (Lead Free)

Product Description

The Legend Valve 111-334NL is a compact water pressure reducing valve designed for use in plumbing systems. This valve helps maintain optimal water pressure, protecting pipes and fixtures from damage. It is made of brass and is lead-free, ensuring safety and compliance with health standards.

• Adjustable outlet pressure range of 25 to 75 psi
• Factory pre-set at 50 psi outlet pressure
• Can be installed in both vertical and horizontal positions

Product Highlights

The valve features an integral strainer, allowing for in-line cleaning and protecting the internal components from debris. It is equipped with a thermal expansion bypass to manage temperature variations effectively.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 111-334NL

Technical Specifications

• Nominal Size: 3/4 inch
• Body Material: Brass
• Max Service Temperature: 180°F
• Max Inlet Pressure: 300 psi
• Max Flow Capacity: 30 GPM
• Pressure Range: 25 to 75 psi
• Weight: 3 lbs
• Shipping Dimensions: 5.9 in x 4 in x 2.4 in
