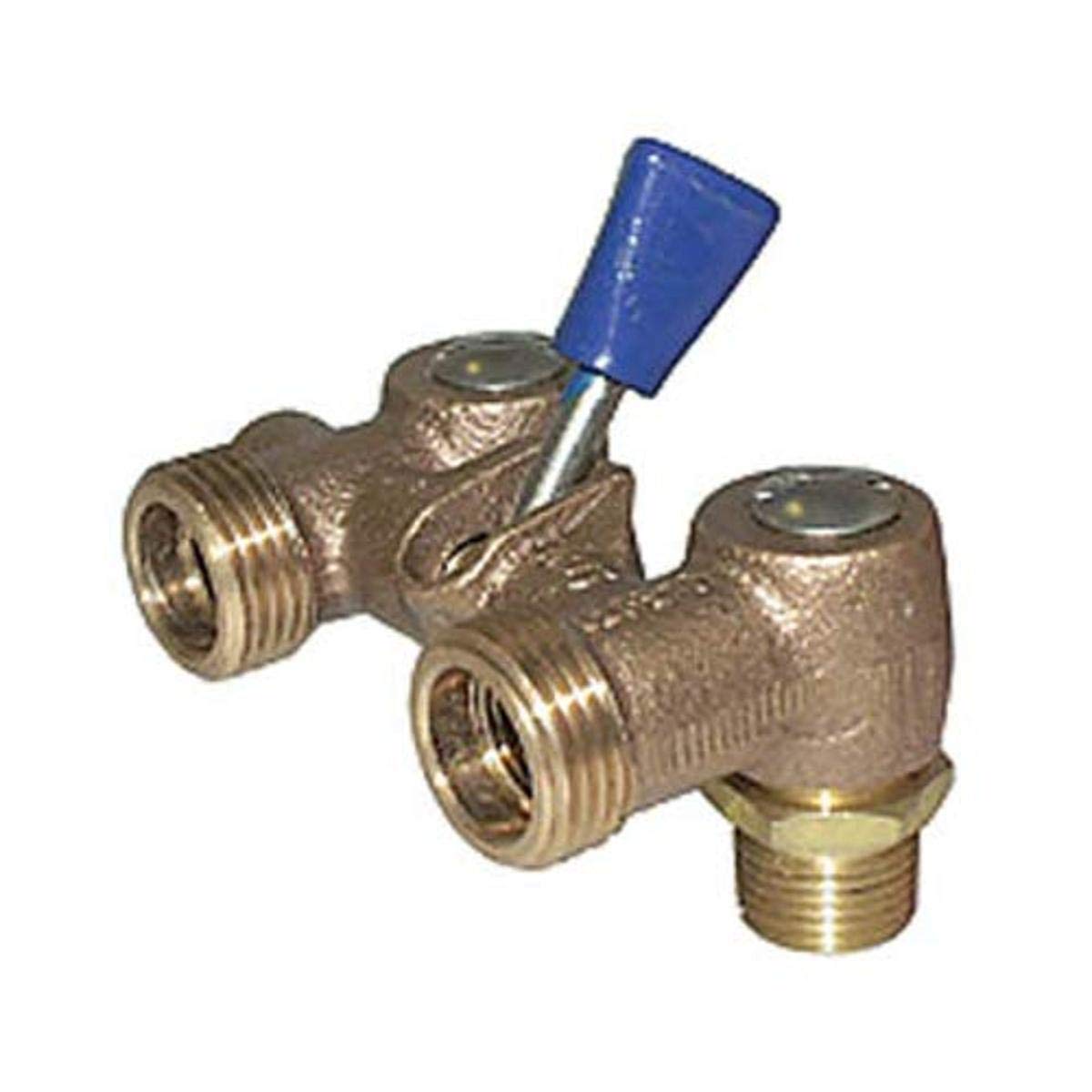

Legend 111-133 1/2 T-11 Washing Machine Valve Dual Outlet

Product Description

The Legend Valve model 111-133 is a washing machine valve designed for dual outlet use. This valve features a nominal size of one-half inch, constructed from cast bronze. The inlet to outlet length measures three and three-fourth inches, ensuring compatibility with most installations. It operates at a pressure rating of 150 psi and is designed to handle temperatures up to 180 degrees Fahrenheit.

• Constructed from durable cast bronze.
• MNPT/C x Male Garden Hose Thread connection style.
• Approved by cUPC with a five-year warranty.

Product Highlights

The T-11 series valve provides easy control of hot and cold water supply to washing machines. Its single lever control design simplifies operation, helping to protect the washing machine hoses and internal components.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545008318

Technical Specifications

• Body Material: Cast Bronze
• Trim Material: Brass
• Connection Type: MNPT/C x Male Garden Hose Thread
• Nominal Size: 1/2 in
• Pressure Rating: 150 psi CWP
• Temperature Rating: 180 degrees F
• Inlet to Outlet Length: 3-3/4 in
• Domestic/Import: Import
• Series: T-11
• Softgoods Material: NBR O-Ring
